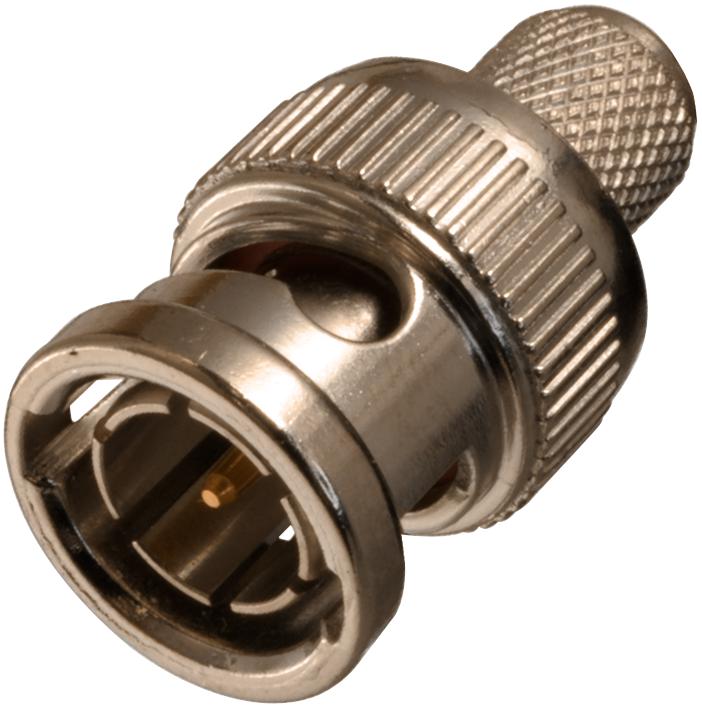

AIM CAMBRIDGE - CINCH CONNECTIVITY 2891027 RF Coaxial Connector
The 28-91027 is a high-quality crimp BNC straight connector designed for reliable RF coaxial cable connections with RG6 cables. It features a durable nickel-plated brass body with gold-plated contacts for optimal conductivity and corrosion resistance, along with a Delrin insulator providing electrical insulation. This connector is rated for an operating temperature range of -55°C to 85°C, withstands voltages up to 500 Vrms, and offers a dielectric withstand voltage of 1500 Vrms. It supports at least 500 connection cycles, making it suitable for diverse RF and industrial communication tasks.
AIM CAMBRIDGE - CINCH CONNECTIVITY 2891027 RF Coaxial Connector Specifications:
- Impedance: 75 OHMS NOMINAL
- Frequency Range: 0-2 GHz
- Working Voltage: 500 Vrms MAX AT SEA LEVEL
- Dielectric Withstanding Voltage: 1500 Vrms
- Impedance: 75 Ohms
- Durability: 500 Cycles MINIMUM
- Temperature Range: -55°C to +85°C
- Contact Resistance: Outer 0.2 milliohms MAXIMUM, Center 2.1 milliohms MAXIMUM
- Insulation Resistance: 5000 Megohms MINIMUM
- Connector Material: Nickel-plated brass with gold-plated contacts
- Insulator Material: Delrin
- Cable Compatibility: RG6
- Maximum Working Voltage: 500 Vrms
- Minimum Durability: 500 connection cycles
- Operating Temperature: -55°C to +85°C
- Environmental Resistance: Moisture resistant per MIL-STD-202
Buy the Buy Brand BNC Connector Part Number 2891027 Online
Purchase the Brand BNC Connector 2891027 today through our online store for reliable, high-quality RF coaxial connections. This connector features a nickel-plated brass body, gold-plated contacts, and a Delrin insulator, supporting operation from -55°C to 85°C. With a maximum working voltage of 500 Vrms and a dielectric withstand voltage of 1500 Vrms, it is designed for high durability, supporting at least 500 connection cycles. Ideal for RF and industrial communication systems requiring dependable performance and corrosion resistance.
Get Brand BNC Connector 2891027 today—built for precision and long-lasting durability in RF communications and industrial applications.
