AIM CAMBRIDGE - CINCH CONNECTIVITY CPN8 high power rf connector
The N connector features a robust threaded interface designed for high power and reliable connections in radio antenna feeds and cellular applications. Constructed from brass with nickel plating, it offers excellent durability and corrosion resistance. The connector supports a frequency range up to 11 GHz, with a 50 ohm impedance, making it suitable for high-frequency signal transmission. Terminations include crimp and clamp styles, accommodating cables up to RG-8 with a center conductor diameter up to 0.110 inches. It withstands temperatures from -65°C to +165°C and ensures environmental stability through MIL-STD-202 moisture resistance and mechanical durability of 500 cycles.
AIM CAMBRIDGE - CINCH CONNECTIVITY CPN8 high power rf connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: 0-11 GHz
- Working Voltage: 500 volts RMS at sea level
- Dielectric Withstanding Voltage: 1500 volts RMS at sea level
- Corona Level: 375 volts at 70,000 feet altitude
- Contact Resistance: Outer - 0.2 milliohms, Center - 2.1 milliohms max
- Insulation Resistance: 5000 megohms min
- Temperature Range: -65°C to +165°C
- Durability: 500 cycles
- Cable Retention: 20 lbs for RG-58 C/U
- Materials: Brass body and nut, brass or copper contact, Teflon® or Delrin insulator, nickel plating
- Plating: Nickel on body, crimp sleeve, hardware; Gold on contact
- Environmental: MIL-STD-202 moisture resistant

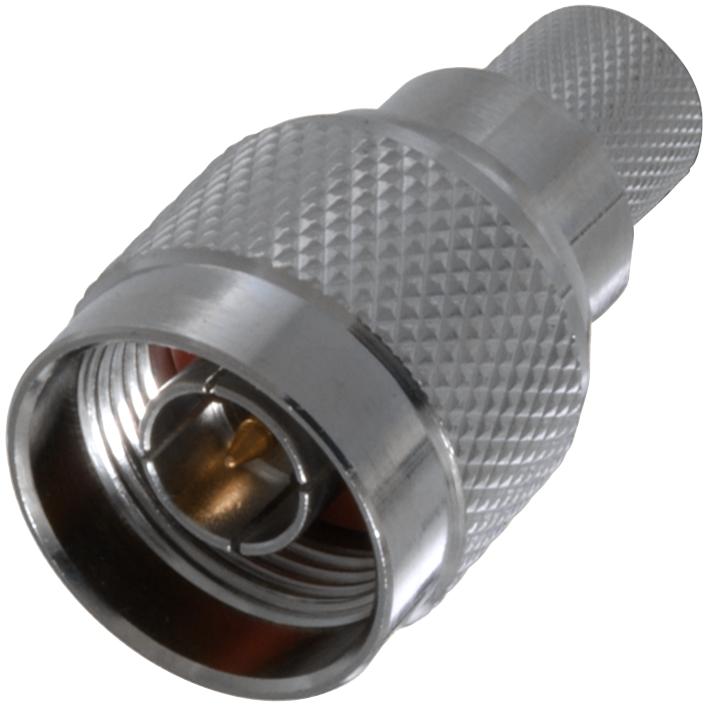

Buy the Buy Cambridge High Power N Connector Part Number CPN8 Online
Order the Cambridge high power RF connector online today for high-frequency applications up to 11 GHz. Designed for rugged use, with nickel plating for corrosion resistance and durable brass construction, it supports crimp and clamp terminations for stable connections. Suitable for radio and cellular antenna feeds, it features a 50 ohm impedance, withstands temperatures from -65°C to +165°C, and ensures environmental reliability. Purchase now for fast delivery and trusted quality, ideal for professional and industrial radio communication setups.
Get Cambridge CPN8 today—built for high power, durability, and reliable RF connections in antenna and cellular applications.
Frequently Asked Questions
Where can I buy AIM CAMBRIDGE - CINCH CONNECTIVITY CPN8?
You can click on the BUY or RFQ button to purchase CPN8 from an authorized AIM CAMBRIDGE - CINCH CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CPN8?
You can download the CPN8 datasheet or visit the AIM CAMBRIDGE - CINCH CONNECTIVITY website for support.
Who is the manufacturer of CPN8?
AIM CAMBRIDGE - CINCH CONNECTIVITY
