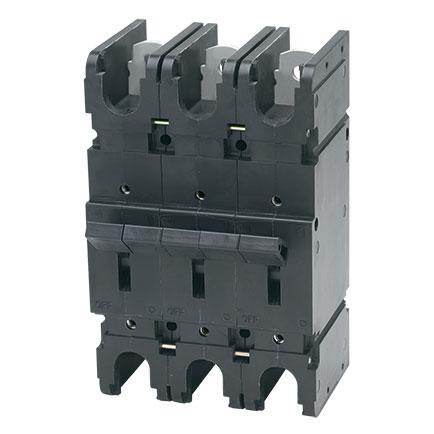

AIRPAX / SENSATA JLE31REC563F5F025 Magnetic Hydraulic Circuit Protector
The AIRPAX / SENSATA JLE-3-1REC5-63F-5-F0-25 magnetic-hydraulic circuit protector is engineered to address circuit protection challenges in high-current applications, particularly where ambient operating temperatures fluctuate. Unlike traditional thermal protective devices, this protector maintains a consistent trip point across a broad temperature range, ensuring reliable performance from -40°C to +85°C. Available in one to six-pole assemblies with diverse configurations and terminal options, the JLE series is a versatile solution for various industrial applications. It complies with UL-489 standards and offers features like an optional internal low voltage shunt for current metering and electrical/mechanical actuated auxiliary switches for external circuit monitoring. Its reduced voltage drop compared to other circuit protective devices further enhances its efficiency and suitability for critical systems.
AIRPAX / SENSATA JLE31REC563F5F025 Magnetic Hydraulic Circuit Protector Specifications:
- Interrupting_Capacity: 10,000 amps, 160Vdc; 10,000 amps, 125/250Vdc; 100,000 amps, 65Vdc (1 amps to 800 amps); 10,000 amps, 160Vdc (ratings ≤1000 amps); 65,000 amps, 65Vdc (801 amps to 1200 amps)
- Number_of_Poles: 1, 2, 3, 4, 5, 6
- Current_and_Voltage_Ratings: 100 to 250 amps, 160Vdc; 100 to 250 amps, 125/250Vdc; 100 to 250 amps, 65Vdc
- Approvals: UL 489 Listed; UL 489A Listed; CSA Certified; CUL/CUR Certified; VDE Certified; CCC Certified
- Operating_Temperature_Range: -40°C to +85°C
- Trip_Point_Consistency: Maintains a consistent trip point over temperatures ranging from -40°C to +85°C
Buy the JLE-3-1REC5-63F-5-F0-25 AIRPAX / SENSATA Magnetic Hydraulic Circuit Protector | myMectronic
Purchase the AIRPAX / SENSATA JLE-3-1REC5-63F-5-F0-25 Magnetic Hydraulic Circuit Protector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy AIRPAX / SENSATA JLE31REC563F5F025?
You can click on the BUY or RFQ button to purchase JLE31REC563F5F025 from an authorized AIRPAX / SENSATA distributor.
How do I troubleshoot issues or seek technical support for part JLE31REC563F5F025?
You can download the JLE31REC563F5F025 datasheet or visit the AIRPAX / SENSATA website for support.
Who is the manufacturer of JLE31REC563F5F025?
AIRPAX / SENSATA
