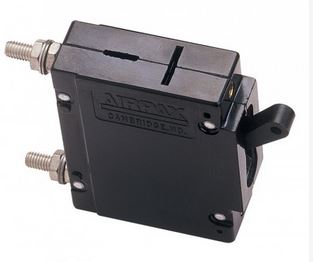

AIRPAX / SENSATA M556296383 Magnetic Trip-Free Circuit Breaker
The AIRPAX / SENSATA M55629/6-383 is a robust magnetic circuit breaker designed for critical applications within the Department of Defense. This three-pole, trip-free device provides reliable circuit protection with a range of current and voltage ratings. It incorporates auxiliary contacts for soldered connections, enhancing its versatility in diverse systems. The breaker's design adheres to MIL-PRF-55629/6G standards, ensuring consistent performance and reliability. Its robust construction and multiple configurations make it suitable for demanding environments.
AIRPAX / SENSATA M556296383 Magnetic Trip-Free Circuit Breaker Specifications:
- Ltr: .149-.211
- A: 0.149-0.211 inches
- B: 1.420-1.470 inches
- C: 0.359-0.391 inches
- D: 0.719-0.781 inches
- E: 2.046-2.078 inches
- F: 0-2.530 inches
- G: 0.187-0.249 inches
- H: 0.109-0.171 inches
- J: 0.249-0.311 inches
- K: 1.660-1.960 inches
- L: 0-0.427 inches
- M: 0.519-0.699 inches
- N: 0-2.800 inches
- P: 0-2.340 inches
- R: 2.000-2.040 inches
- S: 0-2.553 inches
- T: 2.205-2.285 inches
- tolerance: .031 (0.79 mm)
- nut_hex: .190 - 32 UNF-2B
- material_nut: Brass (ASTM-B121/B121M or equivalent)
- material_washer: Brass (ASTM-B121/B121M or equivalent)
- auxiliary_contact_capacity: 10 amperes at 250 volts 60/400 Hz
- actuator_strength: 25 pounds
- actuator_operating_force: 8 pounds
- terminal_strength_load: 30 pounds
- terminal_strength_torque: 22 inch-pounds
- interrupting_capacities: 2,000 amperes at 50 V dc, 2,000 amperes at 120 V ac, 1,500 amperes at 120 V ac, 1,000 amperes at 240 V ac
