ALCOSWITCH---TE-CONNECTIVITY AV1911DA12Q04 Anti-Vandal Switch

Name: AV1911DA12Q04 - Electronic Component
Brand: ALCOSWITCH---TE-CONNECTIVITY
SKU: AV1911DA12Q04
Price: 32.81 USD
Availability: InStock
Rating: 5.0 (1 reviews)

The ALCOSWITCH Anti-Vandal switch series by TE Connectivity is designed for secure, reliable panel-mount applications in industrial and building environments. Featuring large illuminated pushbuttons with LED indicators, these switches are available in sizes from 16mm to 25mm, with various symbols like Spot, Ring, and Power Logo. They are sealed to IP67, with options for single or double pole configurations, constructed from durable stainless steel actuators and copper contacts. These vandal-proof switches facilitate easy installation, ideal for control and communication equipment needing high durability and security.

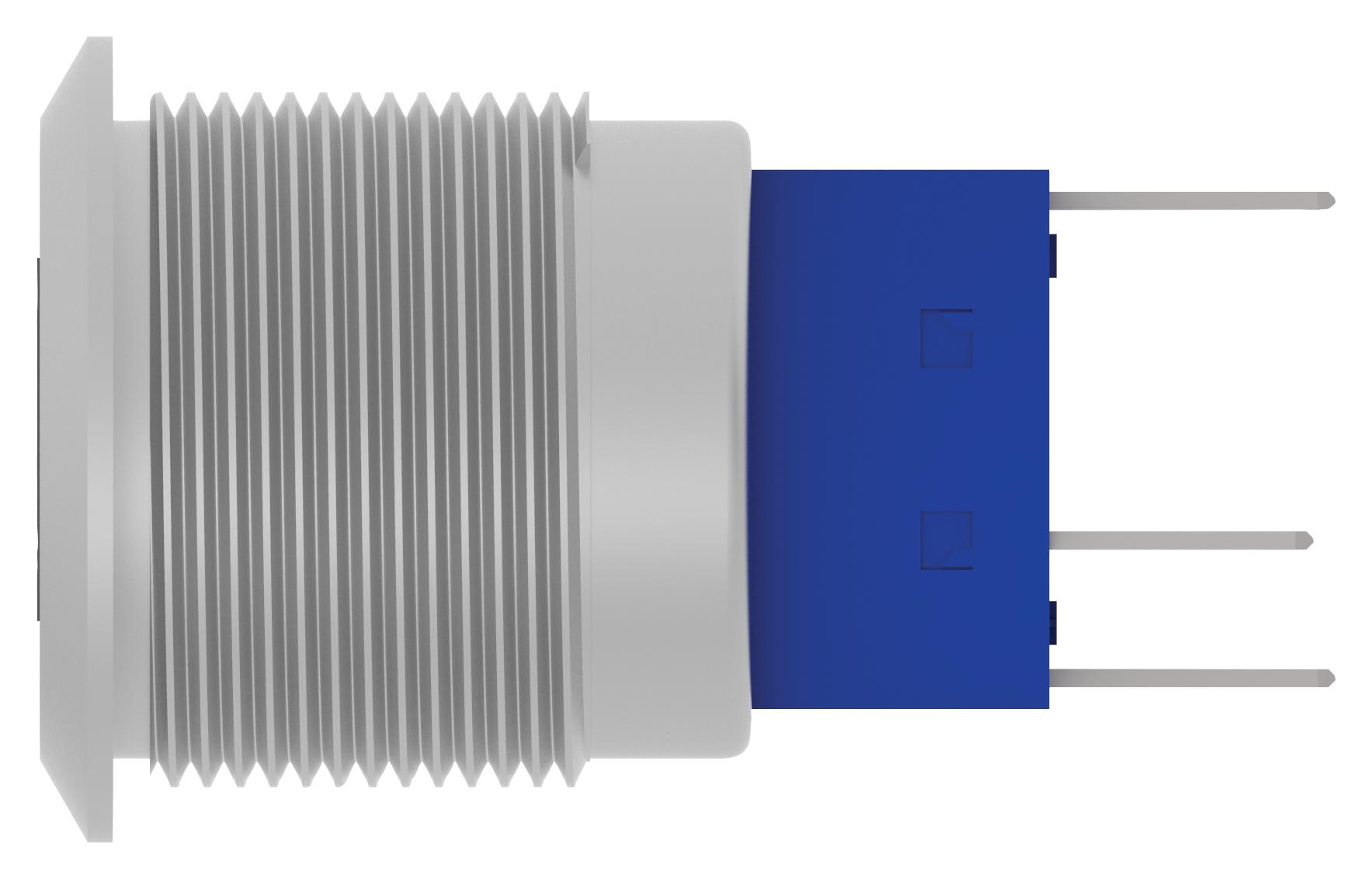

TE Series Anti-Vandal Switch: AV1911DA12Q04

View AV1911DA12Q04Datasheet [pdf]

ALCOSWITCH---TE-CONNECTIVITY AV1911DA12Q04 Anti-Vandal Switch Specifications:

Sizes: 16mm, 19mm, 22mm, 25mm
Electrical Ratings: 2A at 36VDC, 3A at 250VAC
Contacts: Copper with silver or gold plating
Material: PBT case, stainless steel actuator
Environmental: Operating temperature -20°C to +55°C
Sealing: IP67 for water and dust resistance
Pushbutton life: 50,000 to 200,000 cycles depending on size
Poles: Single and double pole options
Approvals: UL (E46765), RoHS, REACH
LED Voltage options: No LED, 12V, 24V; Colors include White, Red, Yellow, Green, Blue

Buy the TE Series Anti-Vandal Switch: AV1911DA12Q04

Purchase the TE Connectivity Anti-Vandal Switch AV1911DA12Q04 online today. Designed for maximum durability in industrial and building environments, this switch features large illuminated pushbuttons with LED indicators for easy operation. Its sealed IP67 construction protects against dust and water, making it ideal for outdoor or harsh settings. Available in various sizes and configurations, this vandal-proof switch ensures reliable performance, straightforward installation, and high-quality materials to meet demanding security and control needs.

Get TE Connectivity AV1911DA12Q04 today—built for secure panel control and long-lasting durability.
