ALCOSWITCH---TE-CONNECTIVITY AV1911P612Q04 Anti-Vandal Switch

Name: AV1911P612Q04 - Electronic Component
Brand: ALCOSWITCH---TE-CONNECTIVITY
SKU: AV1911P612Q04
Price: 23.04 USD
Availability: InStock
Rating: 5.0 (1 reviews)

The ALCOSWITCH Anti-Vandal switch series is designed for secure, reliable panel mount applications in industrial and building environments. Featuring large pushbuttons and available LED indicators in various symbols, these IP67 sealed switches suit elevator, communication, and instrumentation controls. Options include single and double pole configurations with durable materials like stainless steel actuators and copper contacts plated with silver or gold. Operating temperatures range from -20°C to +55°C, ensuring durability in demanding conditions. UL, RoHS, and REACH compliance ensure safety and environmental standards are met.

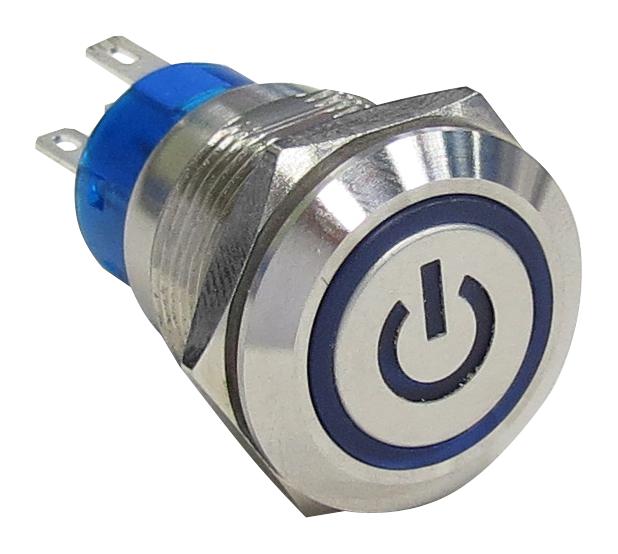

Buy TE Connectivity ALCOSWITCH Anti-Vandal Part Number AV1911P612Q04 Online

View AV1911P612Q04Datasheet [pdf]

ALCOSWITCH---TE-CONNECTIVITY AV1911P612Q04 Anti-Vandal Switch Specifications:

Switch Sizes: 16mm, 19mm, 22mm
Pole Configurations: Single and Double Pole
Contact Rating: 2A @ 36VDC, 3A @ 250VAC
Operating Temperature: -20°C to +55°C
Material: Stainless Steel actuator, copper contacts with silver or gold plating
Sealing: IP67 compliant
LED Voltage Options: 12V, 24V
LED Colors: White, Red, Yellow, Green, Blue
Electrical Life: 200,000 cycles (16mm), 50,000 cycles (19/22mm)
Contact Resistance: 50mOhms max. @ 1A, 12VDC
Insulation Resistance: ≥1000 MOhms @ 500VDC
Dielectric Strength: 2000V for 1 minute
Pushbutton Force: 45±1.5N (16mm), 2.5±1.0N (single pole), 3.5±10N (double pole)
Actuator Travel: 2.0mm (16mm), 3.2mm (19/22mm)
Life Expectancy: 1,000,000 actuations (momentary), 500,000 (push on/off)

Buy the Buy TE Connectivity ALCOSWITCH Anti-Vandal Part Number AV1911P612Q04 Online

Discover the high-quality TE Connectivity Anti-Vandal Switch series, designed for demanding industrial and building security applications. Featuring robust stainless steel actuators, IP67 sealing, and versatile LED indicator options, these switches provide durability and clear user interface in panel-mount configurations. Suitable for elevator controls, instrumentation, and communication systems, they are available in 16mm, 19mm, and 22mm sizes with single or double pole options. Ensure safety and efficiency with UL, RoHS, and REACH compliance, enhancing your control system reliability.

Buy TE Connectivity AV1911P612Q04 now and experience unmatched reliability and security in industrial control applications.
