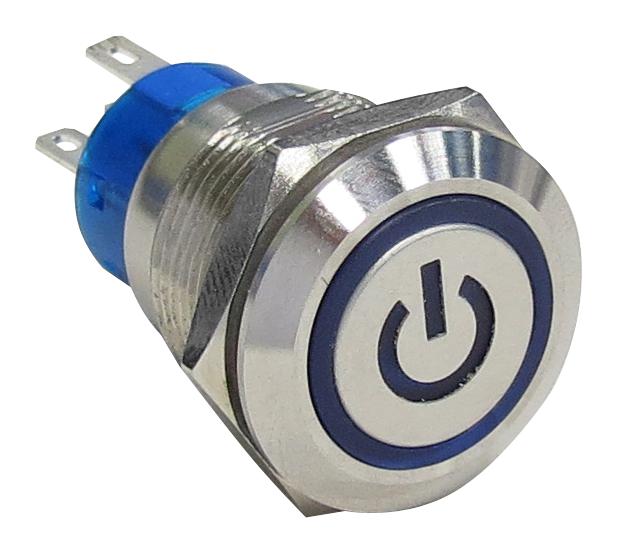

ALCOSWITCH---TE-CONNECTIVITY AV1911P712Q04 Vandal Switch

Name: AV1911P712Q04 - Electronic Component
Brand: ALCOSWITCH---TE-CONNECTIVITY
SKU: AV1911P712Q04
Availability: InStock
Rating: 5.0 (1 reviews)

The ALCOSWITCH Anti-Vandal switch series offers a reliable, vandal-proof solution suitable for industrial and building applications. Featuring large pushbuttons with LED indicators for easy operation, these switches are sealed to IP67 and available in 16, 19, and 22 mm sizes with various symbols like Spot, Ring, and Power Logo. Made with durable materials such as stainless steel actuators and copper contacts, they comply with UL, RoHS, and REACH standards. Perfect for control, communication, and instrumentation panels, offering high electrical and mechanical performance under demanding conditions.

TE Connectivity AV1911P712Q04 – Reliable Vandal-Proof Control Switch for Industrial Applications

View AV1911P712Q04Datasheet [pdf]

ALCOSWITCH---TE-CONNECTIVITY AV1911P712Q04 Vandal Switch Specifications:

Size options: 16mm, 19mm, 22mm
Seal: IP67
Material: Contacts - Copper with silver or gold plating; Actuator - Stainless Steel; Case - PBT
Contact Rating: 2A @ 36VDC, 3A @ 250VAC
Electrical life: 200,000 cycles for 16mm, 50,000 cycles for 19/22mm
Operating temperature: -20°C to +55°C
Contact resistance: 50mΩ max. @ 1A, 12VDC
Insulation resistance: ≥1000 MΩ @ 500VDC
Dielectric strength: 2000V for 1 minute
Actuator force: 45 ±1.5N (16mm), 2.5 ±1.0N (19/22mm)
Actuator travel: 2.0 mm (16mm), 3.2 mm (19/22mm)
Switch functions: OFF-ON, OFF-(ON), single and double pole configurations
Mechanical lifespan: 1,000,000 actuations for momentary, 500,000 for push-on/off
LED options: No LED, White, Red, Yellow, Green, Blue, Power Logo, Moving Ring

Buy the TE Connectivity AV1911P712Q04 – Reliable Vandal-Proof Control Switch for Industrial Applications

Enhance your industrial control systems with the TE Connectivity vandal-proof switch. Featuring durable stainless steel actuators and IP67 sealing, these switches provide reliable operation in demanding environments. Choose from various sizes, LED options, and symbols to match your application needs. Ideal for control panels, communication devices, and instrumentation, ensuring safety, durability, and ease of use. Purchase online today and discover seamless integration, high electrical performance, and long-lasting mechanical life with this reliable vandal-proof switch.

Buy TE Connectivity AV1911P712Q04 now and experience unmatched reliability and performance in vandal-proof industrial switching solutions.
