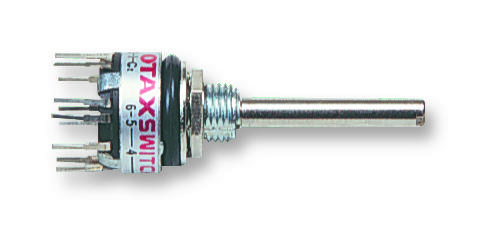

ALCOSWITCH---TE-CONNECTIVITY MRJE2604 Splashproof Rotary Switch
The MRJE2604 is a splashproof rotary switch designed for industrial control and automation applications. It features a 0.4 VA contact rating, a 30° throw, and an adjustable shaft for precise control. Made with gold-plated contacts, zinc die-cast case, and brass actuator, it offers high durability, environmental resistance, and reliable electrical performance. Suitable for PCB mounting, this switch is ideal for demanding environments requiring splashproof features, multiple poles, and various positions for flexible wiring configurations.
ALCOSWITCH---TE-CONNECTIVITY MRJE2604 Splashproof Rotary Switch Specifications:
- Contact rating: 0.4 VA @ 20 VDC or peak VAC
- Electrical life: up to 10,000 cycles @ full contact rating
- Contact resistance, initial: 30 milliohms max
- Insulation resistance: 10 MOhms min
- Dielectric strength: 1,000 Vrms @ sea level
- Operating temperature: 20°C to 70°C
- Storage temperature: -20°C to 70°C
- Solder heat resistance: 285°C + 3°C for 15 seconds
- Material: Gold-plated contacts, zinc die cast case, brass actuator
- Terminal type: PCB mount with insert molded terminals
- Actuator options: standard shaft, splashproof, screwdriver slot, with or without knob
- Dimensions: Width approximately 18 mm, height approximately 20 mm, adjustable shaft length
- Environmental: splashproof version for harsh environments
- RoHS compliant
Buy the Tyco MRJE2604 – Reliable Splashproof Rotary Switch for Industrial Applications
Purchase the Tyco MRJE2604 splashproof rotary switch online today and ensure reliable operation in demanding industrial environments. Featuring a 0.4 VA contact rating, adjustable shaft, gold-plated contacts, and splashproof design, this switch offers durable performance and flexibility for automation projects. Perfect for PCB mounting with multiple poles and various positions, it provides excellent electrical contact stability and environmental resistance. Buy now for swift delivery and integrate this high-quality switch into your control systems for lasting performance and safety.
Order your Tyco MRJE2604 splashproof rotary switch today and enhance your industrial control systems with dependable quality and robust features.
Frequently Asked Questions
Where can I buy ALCOSWITCH---TE-CONNECTIVITY MRJE2604?
You can click on the BUY or RFQ button to purchase MRJE2604 from an authorized ALCOSWITCH---TE-CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part MRJE2604?
You can download the MRJE2604 datasheet or visit the ALCOSWITCH---TE-CONNECTIVITY website for support.
Who is the manufacturer of MRJE2604?
ALCOSWITCH---TE-CONNECTIVITY
