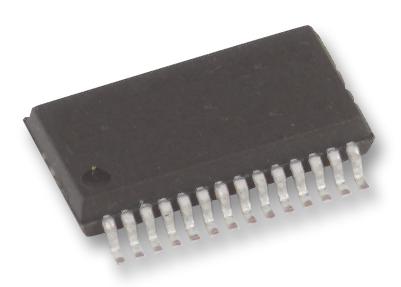

ALLEGRO MICROSYSTEMS A4919GLPTR5T Three-Phase MOSFET Driver
The A4919 is a high-current, three-phase gate driver designed for use with N-channel external power MOSFETs. It features a charge pump regulator that provides full gate drive at supply voltages as low as 7V, enabling operation with reduced gate drive down to 5.5V. A bootstrap capacitor supplies the necessary voltage for N-channel MOSFETs. The device includes one logic-level input for each of the six MOSFETs in the three-phase bridge, allowing motor control with any commutation scheme via an external controller. Integrated crossover control protects against cross-conduction, and additional features include phase short detection, undervoltage and overtemperature monitoring, a regulated logic supply output option, and a low-current sleep mode. Suitable for industrial, power management, and consumer electronic applications.
ALLEGRO MICROSYSTEMS A4919GLPTR5T Three-Phase MOSFET Driver Specifications:
- Supply Voltage Range: 5.5 to 50 V
- Regulated logic supply output: Yes
- Sleep mode: Low-current current mode
- Buffer voltage: Full (+10V) gate drive at 7 V, reduced to 5.5 V
- Bootstrap capacitor: Provides voltages for N-channel MOSFETs
- Gate drive outputs: Six, three high-side (GHA, GHB, GHC) and three low-side (GLA, GLB, GLC)
- Peak gate current: Up to 13 A
- Gate drive timing: Turn-On/Turn-Off times within typical 20–35 ns
- Fault detection: Phase short, undervoltage, overtemperature, VDS overvoltage, bootstrap undervoltage
- Fault output: Open-drain, active-high, rated up to 5.5 V
- Package options: 28-pin TSSOP with thermal pad (LP), 28-terminal QFN with thermal pad (ET)
- Operating temperature: -55°C to +105°C
- Device variant includes 3.3 V and 5 V LDO regulator options
Buy the Buy Allegro A4919GLPTR5T Three-Phase MOSFET Driver with Integrated Regulator Online
Order Allegro A4919GLPTR5T online today to benefit from reliable three-phase motor control solutions featuring integrated regulation, phase short detection, undervoltage and overtemperature monitoring. Perfect for industrial and power management applications, this driver offers fast switching times, protection features, and easy PCB integration. Secure your supply of high-current gate drivers and improve system reliability by purchasing conveniently online — get the best performance, detailed technical support, and quick delivery for your motor control projects.
Buy Allegro A4919GLPTR5T now and experience unmatched reliability and high-performance motor control with integrated protection features.
