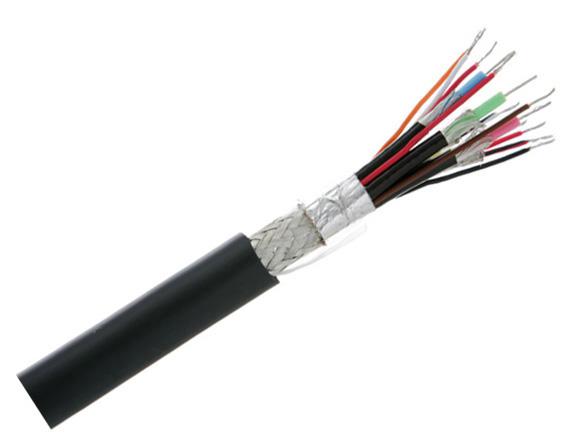

ALPHA WIRE 1122CL005 Multi-Conductor Cable Assembly
The ALPHA WIRE 1122 CL005 is a multi-conductor cable assembly designed for reliable signal transmission and power distribution in a wide range of industrial environments. It consists of four 28 AWG conductors, each insulated with PVC and color-coded for easy identification. A TC braid shield provides excellent electromagnetic interference (EMI) protection, ensuring signal integrity. The cable is constructed with a clear Mylar core wrap and a durable PVC jacket, offering flexibility and resistance to abrasion. This cable is RoHS compliant and suitable for applications requiring a balance of performance, durability, and environmental responsibility.
ALPHA WIRE 1122CL005 Multi-Conductor Cable Assembly Specifications:
- Component 1: 4 X 1 COND
- Conductor: 28 (7/36) AWG TC
- Insulation: 0.010" Wall, Nom. PVC
- Color Code: Alpha Wire Color Code D
- Twists: 9.6 Twists/foot (min)
- Core Wrap: Clear Mylar Tape, 25% Overlap, Min.
- Shield: TC BRAID Shield,80% Coverage, Min.
- Jacket: 0.010" Wall, Nom.,PVC
- Color(s): CLEAR
- Print: ALPHA WIRE-* P/N 1122<br>CE ROHS<br>* = Factory Code
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 8.1 Lbs, Maximum
- Voltage Rating: 200 VRMS
- Capacitance: 35 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 63 pf/ft @1 kHz, Nominal
- Inductance: 0.22 µH/ft, Nominal
- Conductor DCR: 65 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 7.5 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging - 500 FT: 6.5 x 6 x 1.9 Continuous length
- Packaging - 100 FT: 6.5 x 2 x 1.9 Continuous length
