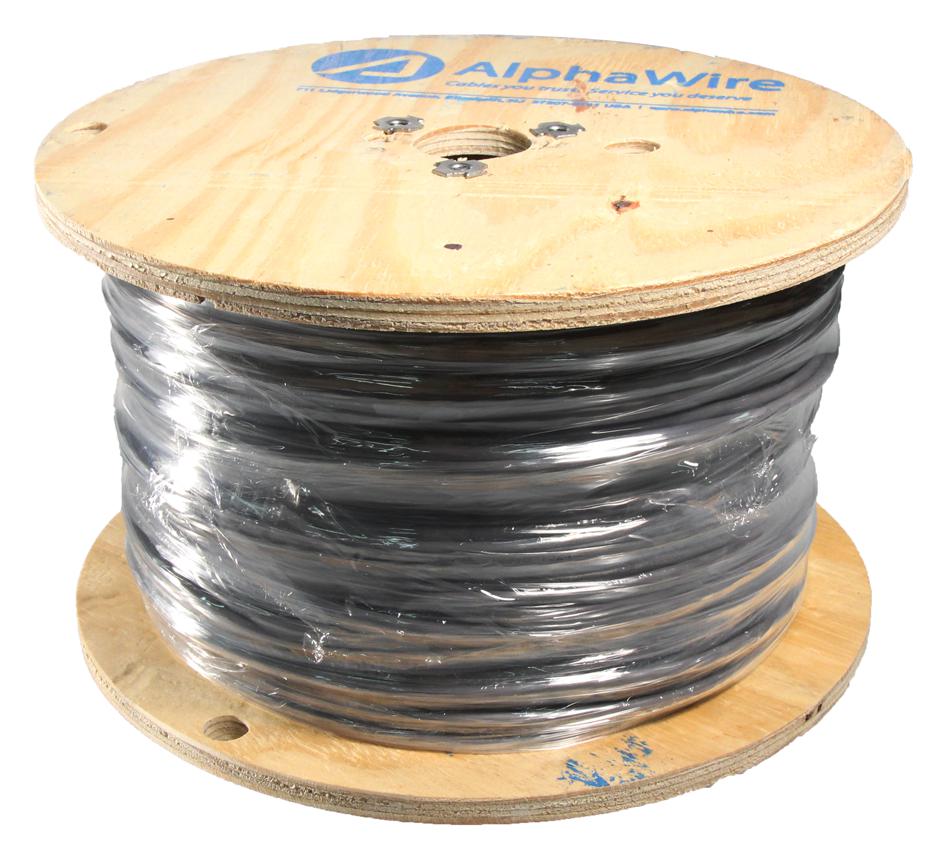

ALPHA WIRE 1174CSL001 Four-Core Unshielded Cable
The 1174C SL001 is a four-core unshielded cable with tinned copper conductors, PVC insulation, and a slate-colored PVC jacket. Suitable for audio, communication, networking, sensors, security, automation, and consumer electronics, it features a maximum pull tension of 22 pounds, a capacitance of 33 pF/ft at 1 kHz, and a conductor DCR of 16.3 ohms per 1000 feet at 20°C. Its robust design ensures reliable performance in diverse industrial and electronic applications, meeting UL, CSA, and RoHS standards for safety and environmental compliance.
ALPHA WIRE 1174CSL001 Four-Core Unshielded Cable Specifications:
- Conductor Material: Tinned Copper
- Number of Conductors: 4
- Conductor Gauge: 22 AWG
- Insulation Wall Thickness: 0.010 inches
- Jacket Material: PVC
- Jacket Color: Slate
- Jacket Wall Thickness: 0.032 inches
- Maximum Pull Tension: 22 pounds
- Capacitance: 33 pF/ft at 1 kHz
- Inductance: 0.18 microhenries per foot
- Conductor DCR: 16.3 ohms per 1000 feet at 20°C
- Voltage Rating: 300 V
- Temperature Range: -20°C to 80°C
- Bend Radius: 10x cable diameter
- Lengths Available: 100 ft, 500 ft, 1000 ft, continuous reel
- Certifications: UL, CSA, RoHS, CE
- Compliance: Meets EU Low Voltage Directive 2006/95/EC and REACH regulations
Buy the Alpha Wire Series 1174C SL001: Four-Core Unshielded Cable
Purchase the Alpha Wire 1174C SL001 online today for a versatile four-core unshielded cable perfect for audio, communication, and automation projects. Featuring PVC insulation, a slate-colored PVC jacket, and tinned copper conductors, this cable boasts a maximum pull tension of 22 pounds and excellent electrical properties. Certified for UL, CSA, and RoHS standards, it ensures safety and durability. With various length options available, buying online guarantees quick delivery for your project needs, offering high performance and compliance for industrial and electronic applications.
Get Alpha Wire 1174C SL001 today—built for reliable electrical performance and environmental compliance in industrial and consumer applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1174CSL001?
You can click on the BUY or RFQ button to purchase 1174CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1174CSL001?
You can download the 1174CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1174CSL001?
ALPHA WIRE
