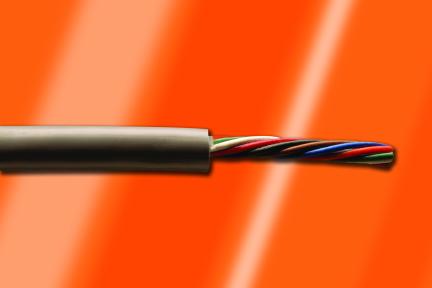

ALPHA WIRE 1175LSL001 Control Cable
This product is a low-smoke zero halogen (LSZH) cable assembly designed for signaling and control applications in environments requiring fire safety standards. It features 22 AWG tinned copper conductors with a 0.010-inch wall insulation, color-coded in white, green, and slate. The cable is cabled with six twists per foot, 5 components, and a jacket that complies with UL and CSA Type CMG standards. It offers excellent flexibility with a bend radius of 10 times the cable diameter, rated for 300 volts, with impedance and capacitance suitable for low-voltage control circuits. Compliant with RoHS, REACH, IEC, and European safety standards, it ensures reliable electrical performance and environmental safety.
ALPHA WIRE 1175LSL001 Control Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Insulation: 0.010-inch wall, Low Smoke Zero Halogen (LSZH)
- Color Code: White, Green, Slate
- Cable Construction: 5 Components, 6 twists/foot
- Jacket: LSZH, UL/CSA Type CMG
- Voltage Rating: 300 V
- Temperature Range: -20°C to 75°C
- Bend Radius: 10X cable diameter
- Pull Tension: 27 Lbs maximum
- Capacitance: 26 pF/ft @1 kHz
- Inductance: 0.18 μH/ft
- Conductor DC Resistance: 16.3 Ω/1000 ft @20°C
- Flammability: IEC 60332-1 compliant
- Smoke Emission: IEC 61034-2 compliant
- Acid Gas Emission: IEC 60754-1 & 60754-2 compliant
Buy the Alpha Wire Series Control Cable: 1175L
Order the Alpha Wire 1175L control cable online today and ensure reliable, safe electrical connections for signaling and control applications. This LSZH cable features 22 AWG tinned copper conductors with a 0.010-inch wall, perfect for environments that demand low smoke and halogen-free materials. Its cabled construction with six twists per foot and UL/CSA Type CMG ratings guarantees excellent flexibility, durability, and safety compliance, including RoHS and REACH. Purchase now for fast delivery and trusted quality, suitable for industrial, commercial, and safety-critical systems.
Get Alpha Wire 1175L today—built for safety, flexibility, and high-performance control circuits in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1175LSL001?
You can click on the BUY or RFQ button to purchase 1175LSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1175LSL001?
You can download the 1175LSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1175LSL001?
ALPHA WIRE
