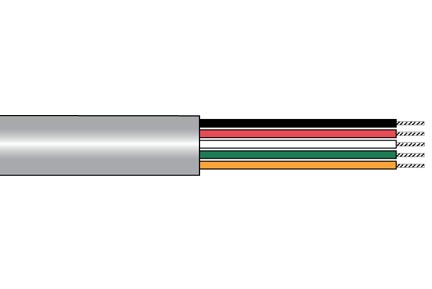

ALPHA WIRE 118120CSL005 22 AWG Hook Up Wire
The ALPHA WIRE 1181/20C SL005 is a versatile 22 AWG hook-up wire, ideal for connecting electronic components and devices. Its PVC insulation provides reliable electrical insulation and protection against abrasion. The wire's color-coded conductors simplify identification and assembly, while its RoHS compliance ensures environmental responsibility. Commonly used in appliances, instrumentation, and control panels, this wire offers a balance of performance, durability, and ease of use. It is designed to meet the demands of various industrial and commercial applications.
ALPHA WIRE 118120CSL005 22 AWG Hook Up Wire Specifications:
- Component 1: 20 X 1 COND
- Conductor AWG: 22 (7/30) AWG TC
- Insulation Wall: 0.010" Wall, Nom. PVC
- Color Code: Alpha Wire Color Code D
- Jacket Wall: 0.032" Wall, Nom.,PVC
- Print: ALPHA WIRE-* P/N 1181/20C 20C 22 AWG 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX CSA TYPE CMG FT4 CE ROHS
- Twists per foot: 3.2 Twists/foot (min)
- Cable Diameter: 0.326 (0.344 Max.)
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 110 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 33 pf/ft @1 kHz, Nominal Conductor to Conductor
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 16.5 Ω/1000ft @20°C, Nominal
- UL Style: AWM/STYLE 2576
- CSA Rating: CMG 60°C
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with EU Directive 2011/65/EU and 2015/863/EU
- SVHC Status: Does not contain SVHC in excess of 0.1% mass
