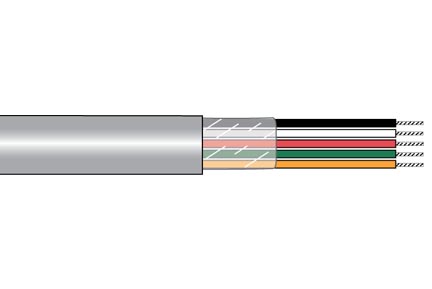

ALPHA WIRE 1279SLATE100 Slate PVC Cable Assembly
The ALPHA WIRE 1279-SLATE-100 is a multi-conductor cable assembly designed for reliable signal transmission and power distribution in diverse industrial environments. Featuring a durable slate jacket and PVC insulation, this cable provides excellent protection against abrasion and environmental factors. The 20 AWG conductors, arranged in a 3-conductor configuration, ensure efficient current carrying capacity and signal integrity. Compliant with RoHS and CE standards, this cable assembly is a versatile solution for applications requiring robust and dependable performance. Its construction includes a color-coded conductor system (Black, Red, White) for easy identification and streamlined installation.
ALPHA WIRE 1279SLATE100 Slate PVC Cable Assembly Specifications:
- Component 1: 3 X 1 COND
- Conductor: 20 (7/28) AWG TC
- Insulation: 0.016" Wall, Nom. PVC
- Color Code: Alpha Wire Color Code D
- Cable Assembly: 3 Components Cabled
- Twists: 5.3 Twists/foot (min)
- Jacket: 0.020" Wall, Nom.,PVC
- Jacket Color: Slate, Black
- Print: ALPHA WIRE-* P/N 1896C 3C 20 AWG (UL) 75C TYPE CM OR AWM 2509 --- LLXXXXXX CSA TYPE CMG FT4 CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2509
- UL Voltage: 80°C / 300 VRMS
- UL CM: 75°C
- UL VW-1: VW-1
- CSA CMG: 60°C
- CSA FT4: FT4
- CE Directive: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with EU Directive 2011/65/EU
- REACH Regulation: Does not contain SVHC in excess of 0.1% mass
- California Proposition 65: Compliant
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 26 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 30 pf/ft @1 kHz, Nominal Conductor to Conductor
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 10.2 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 10 x 5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 4 x 2.5 Continuous length
Buy the 1279-SLATE-100 ALPHA WIRE Slate Cable Assembly | myMectronic
Purchase the ALPHA WIRE 1279-SLATE-100 cable assembly securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 1279SLATE100?
You can click on the BUY or RFQ button to purchase 1279SLATE100 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1279SLATE100?
You can download the 1279SLATE100 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1279SLATE100?
ALPHA WIRE
