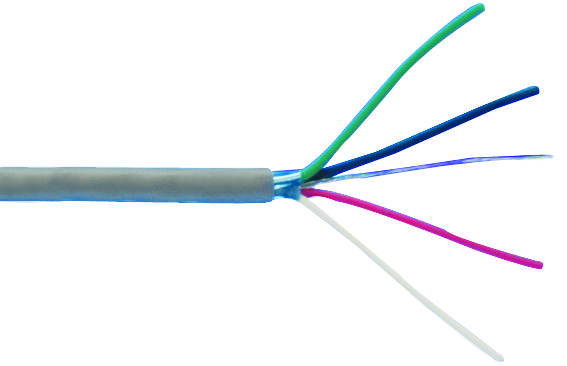

ALPHA WIRE 1292CSL001 Shielded Data Cable
The ALPHA WIRE 1292C SL001 is a robust shielded data cable engineered for demanding applications requiring reliable signal integrity. Constructed with 22 AWG stranded conductors, the cable offers excellent flexibility and durability. The PVC insulation provides reliable electrical insulation, while the aluminum/mylar tape shield effectively minimizes electromagnetic interference (EMI) and radio frequency interference (RFI). The slate-colored PVC jacket provides abrasion resistance and easy identification. This cable is RoHS compliant, ensuring environmental responsibility. It is commonly used in data transmission, instrumentation, and control systems where signal quality is paramount.
ALPHA WIRE 1292CSL001 Shielded Data Cable Specifications:
- Component 1: 2 X 1 COND
- Conductor: 22 (7/30) AWG TC
- Insulation Wall: 0.010" Nom. PVC
- Color Code: Alpha Wire Color Code D
- Cable Assembly: 2 Components Cabled
- Twists per foot: 8.0 Twists/foot (min)
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing Out
- Drain Wire: 22 (7/30) AWG TC
- Jacket Wall: 0.032" Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 1292C 2C 22 AWG<br>SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX<br>CSA TYPE CMG FT4 CE ROHS<br>* = Factory Code
- UL Style: AWM/STYLE 2576
- UL Voltage Rating: 80°C / 150 VRMS
- UL CM Rating: 75°C
- UL VW-1 Rating: VW-1
- CSA CMG Rating: 60°C
- CSA FT4 Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 16.5 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 55 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 99 pf/ft @1 kHz, Nominal
- Characteristic Impedance: 41 Ω
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 16.3 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 13.6 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 6 x 3.5 inches
- Packaging 500 FT: 12 x 4.5 x 3.5 inches
- Packaging 100 FT: 6.5 x 2 x 1.9 inches
