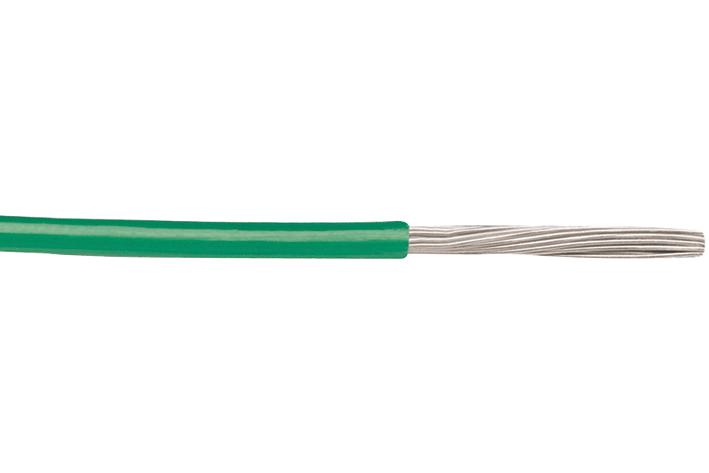

ALPHA WIRE 1560GR001 Hookup Wire
High-quality hookup wire designed for electrical and electronic applications, featuring a 12 AWG conductor with PVC insulation, rated for 1000 V and -40°C to 80°C. This flexible, RoHS-compliant wire comes in multiple colors including white, black, red, green, yellow, blue, brown, orange, slate, and violet, with various lengths suitable for industrial wiring. It complies with military standards MIL-W-76B, ensuring durability and reliability in demanding environments. The wire’s low DCR and inductance make it ideal for power and signal transmission, meeting stringent environmental and safety standards.
ALPHA WIRE 1560GR001 Hookup Wire Specifications:
- Conductor: 12 AWG TC
- Insulation: PVC, 0.016 inch wall
- Temperature Range: -40°C to 80°C
- Maximum Voltage Rating: 1000 V
- Inductance: 0.03 pH/ft
- Conductor DCR: 1.75 Ω/1000 ft @ 20°C
- Pull Tension: 51 lbs
- Bend Radius: 10X cable diameter
- Length Options: 1000 ft, 100 ft spools
- Applicable Standards: MIL-W-76B
- RoHS, REACH, and California Proposition 65 compliant
- Colors available: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
Buy the AlphaWire 1560 U–2013 Reliable Hookup Wire for Industrial Applications
Order AlphaWire 1560 hookup wire online today and enjoy fast delivery of premium quality, RoHS-compliant cable suitable for various industrial, military, and electronic applications. Designed with a 12 AWG conductor and PVC insulation, it offers excellent electrical performance with a maximum voltage of 1000 V and a temperature range of -40°C to 80°C. Available in multiple colors and lengths, this wire ensures durability, safety, and compliance with global standards, making your wiring tasks safer and more efficient.
Buy AlphaWire 1560 hookup wire now and experience unmatched reliability, flexibility, and compliance for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 1560GR001?
You can click on the BUY or RFQ button to purchase 1560GR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1560GR001?
You can download the 1560GR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1560GR001?
ALPHA WIRE
