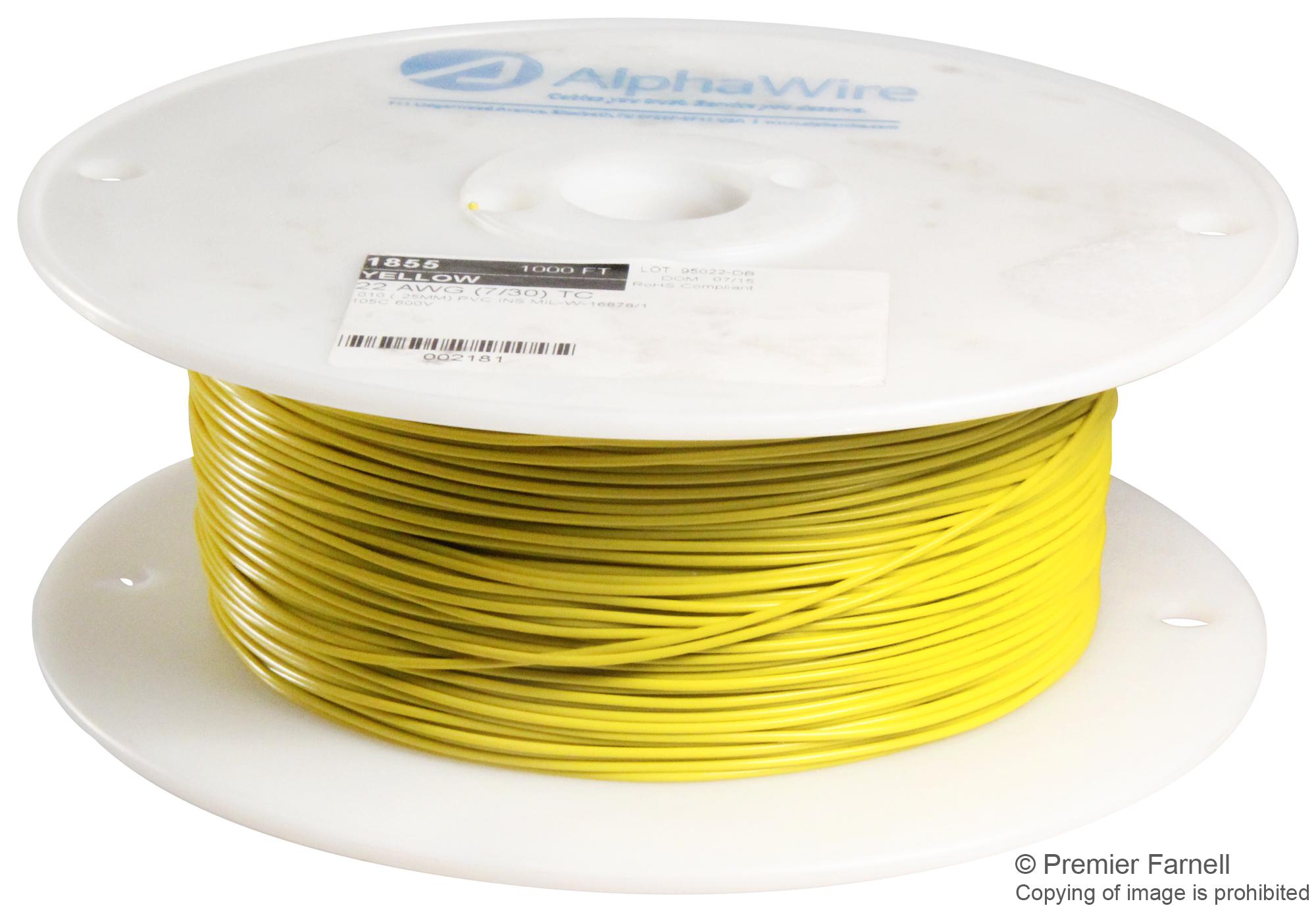

ALPHA WIRE 1855YL001 Hook Up Wire
The ALPHA WIRE 1855 YL001 is a versatile hook-up wire designed for general-purpose applications. Constructed with 22 AWG stranded copper conductors and a durable PVC insulation, this wire offers excellent flexibility and electrical performance. It meets military specifications (MIL-W-76B Type LW) and is RoHS compliant, ensuring its suitability for use in a wide range of industries, including electronics, appliances, and automotive. Available in a variety of colors, this wire provides reliable connectivity and is ideal for internal wiring and low-voltage applications.
ALPHA WIRE 1855YL001 Hook Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 22 (7/30) AWG TC
- Insulation: 0.010" Wall, Nom. PVC
- Insulation Diameter: 0.050+/- 0.002 inch
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET, WHITE/BLACK, WHITE/RED, WHITE/GREEN, WHITE/YELLOW, WHITE/BLUE, WHITE/BROWN, WHITE/ORANGE, WHITE/SLATE, WHITE/VIOLET
- Military Specification: MIL-W-76B TYPE LW
- Voltage Rating: 300 VRMS
- MIL-W-16878E/1: 105°C / 600 VRMS
- Temperature Range: -55 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 5.5 Lbs, Maximum
- Inductance: 0.05 µH/ft, Nominal
- Conductor DCR: 16.2 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 2 x 1.9 inches
- Packaging 100 FT: 2.75 x 1 x 1.125 inches
- SVHC Declaration: Does not contain SVHC in excess of 0.1% mass
Buy the 1855 YL001 ALPHA WIRE Hook Up Wire | myMectronic
Purchase ALPHA WIRE 1855 YL001 hook-up wire securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 1855YL001?
You can click on the BUY or RFQ button to purchase 1855YL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1855YL001?
You can download the 1855YL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1855YL001?
ALPHA WIRE
