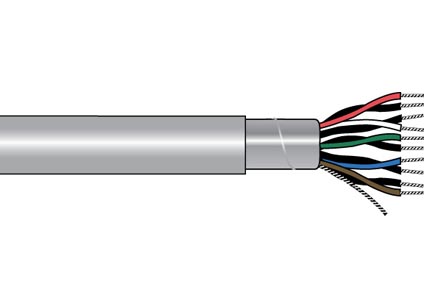

ALPHA WIRE 2211CSL005 Shielded PVC Data Cable
The ALPHA WIRE 2211C SL005 is a high-quality shielded data cable engineered for dependable performance in diverse industrial and commercial settings. Constructed with 22 AWG TC conductors insulated with PVC, this cable offers excellent signal integrity and protection against electromagnetic interference. The aluminum/mylar tape shield provides robust shielding, while the PVC jacket ensures durability and flexibility. Compliant with RoHS directives, the 2211C SL005 is a sustainable choice for modern data transmission needs. It is commonly used in applications such as data networking, instrumentation, and control systems where reliable signal transfer is critical.
ALPHA WIRE 2211CSL005 Shielded PVC Data Cable Specifications:
- Construction: 1 X 1 PAIR, 22 (7/30) AWG TC conductor, 0.010" Wall PVC insulation, 8.0 Twists/foot, Alum/Mylar Tape Shield (25% Overlap), 22 (7/30) AWG TC Drain Wire, 0.032" Wall PVC Jacket, SLATE color, Print with part number and specifications
- Color Code: BLACK-RED
- UL Rating: AWM/STYLE 2576, 80°C / 150 VRMS, CM, VW-1
- CSA Rating: CMG, 60°C, FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with RoHS 2 and RoHS 3 directives, No Exemptions required
- REACH Compliance: Does not contain SVHCs above 0.1% mass
- California Proposition 65: Statement available on Alpha Wire's website
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 16.5 Lbs, Maximum
- Voltage Rating: 150 VRMS
- Mutual Capacitance: 55 pf/ft @1 kHz, Nominal
- Ground Capacitance: 99 pf/ft @1 kHz, Nominal
- Characteristic Impedance: 41 Ω
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 16.2 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 15.5 Ω/1000ft @20°C, Nominal
- Packaging: 1000 FT: 12 x 6 x 3.5 inches, 500 FT: 12 x 4.5 x 3.5 inches, 100 FT: 6.5 x 2 x 1.9 inches
Buy the 2211C SL005 ALPHA WIRE Shielded PVC Data Cable | myMectronic
Purchase the ALPHA WIRE 2211C SL005 securely and efficiently to ensure your project's success.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2211CSL005?
You can click on the BUY or RFQ button to purchase 2211CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2211CSL005?
You can download the 2211CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2211CSL005?
ALPHA WIRE
