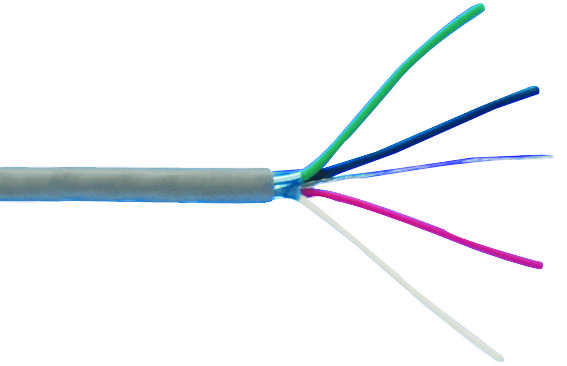

ALPHA WIRE 2422CSL005 Shielded Cable Assembly
The Alpha Wire 2422C SL005 is a high-quality shielded cable assembly designed for demanding applications requiring robust signal integrity and protection from electromagnetic interference. Constructed with 20 AWG tinned copper conductors, the cable offers excellent conductivity and durability. The aluminum/mylar tape shield, combined with a drain wire, effectively minimizes noise and crosstalk, ensuring reliable data transmission. The PVC jacket provides abrasion resistance and overall cable protection. This cable is suitable for use in industrial automation, data communication, and power transmission systems where signal integrity and reliability are critical.
ALPHA WIRE 2422CSL005 Shielded Cable Assembly Specifications:
- Component 1: 4 X 1 COND
- Conductor: 20 (7/28) AWG Tinned Copper
- Insulation Wall: 0.016" Wall, Nom. FR HDPE
- Color Code: Alpha Wire Color Code D
- Twists per foot: 4.8 Twists/foot (min)
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing Out
- Drain Wire: 20 (7/28) AWG Tinned Copper
- Jacket Wall: 0.022" Wall, Nom., PVC
- Color: SLATE
- Print: ALPHA WIRE-* P/N 2414C 4C 20 AWG SHIELDED 75C (UL) TYPE CMG OR AWM 2094 ---- C(UL) CMG FT4 CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2094
- UL Voltage Rating: 60°C / 300 VRMS
- UL Temperature Rating: 75°C
- UL Flammability Rating: VW-1
- CSA Type: C(UL) TYPE CMG
- CSA Voltage Rating: 75°C
- CSA Flammability Rating: FT4
- CE Directive: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 75°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 44 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 23.9 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 43 pf/ft @1 kHz, Nominal
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 10.2 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 8.2 Ω/1000ft @20°C, Nominal
- Packaging Lengths: 2500 FT, 1000 FT, BOX 1000FT, BOX 500FT, 500 FT, 328 FT, 100 FT
