ALPHA WIRE 2463LSL005 Shielded Industrial Cable
The shielded cable features 22 AWG twisted pair conductors with a 0.008-inch wall polypr insulation, designed for low smoke zero halogen applications. Constructed with aluminum/mylar tape shielding and a low smoke zero halogen jacket, it offers excellent fire safety properties, UL CMG and CSA certifications, and compliance with European RoHS and REACH standards. The cable has a temperature range of -20°C to 75°C, a maximum Bend Radius of 10 cable diameters, and a Voltage Rating of 300 V. Its physical dimensions include a nominal diameter of 0.258 inches and typical twist rates of 4.4 twists/foot, suitable for industrial automation, control systems, and signal transmission environments, providing durability, safety, and electromagnetic interference resistance.
ALPHA WIRE 2463LSL005 Shielded Industrial Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Insulation: 0.008-inch polypr, low smoke zero halogen
- Jacket: Nominal 0.258-inch, low smoke zero halogen, flame retardant
- Shield: Aluminum/Mylar tape with foil facing out, 25% overlap, drain wire 24 AWG Tinned Copper
- Twist Rate: 4.4 twists/foot (minimum)
- Temperature Range: -20°C to 75°C
- Voltage Rating: 300 V (ams)
- Bend Radius: 10 times cable diameter
- Maximum Length Options: 1000 ft, 500 ft, 100 ft, bulk (custom)
- Certifications: UL CMG, CSA C(UL) TYPE CMG, IEC 60332-1 Flammability Test Passed
- Impedance: 53 Ω @ 1 kHz
- Capacitance: 29 pF/ft @ 1 kHz, 52 pF/ft ground capacitance, 16.2 Ω/1000 ft conductor DCR
- Compliance: RoHS 2, REACH, California Proposition 65, IEC emission standards

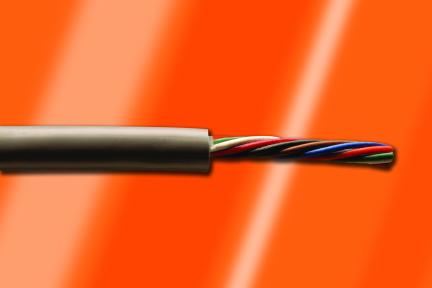

Buy the Buy AlphaWire Shielded Cable Part Number 2463L Online
Order AlphaWire 2463L shielded industrial cable online for superior safety, durability, and electromagnetic interference resistance. Perfect for control panels, automation, and signal transmission, this cable features 22 AWG conductors with low smoke zero halogen insulation and aluminum/mylar foil shielding. Certified UL and CSA, it complies with RoHS and REACH directives, ensuring environmental safety. Available in various lengths, including 1000, 500, and 100 feet, it's ideal for industrial applications requiring fire-retardant, low smoke, and flame-resistant wiring solutions. Purchase now for quick delivery and dependable performance.
Get AlphaWire 2463L today—designed for fire safety, electromagnetic resistance, and reliable signal transmission in industrial environments.
