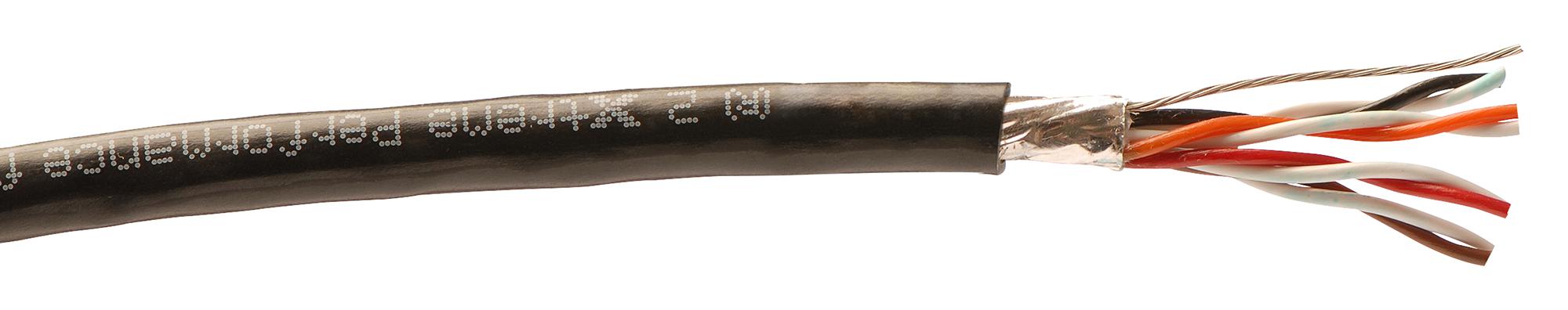

ALPHA WIRE 25492BK005 Multipair Industrial Cable
The 25492 BK005 cable from Alpha Wire is an Xtra-Guard® 2 oil and abrasion resistant, foil-shielded multipair cable designed for industrial environments with high mechanical stress. Its rugged polyurethane jacket provides three times the tear and abrasion resistance of standard PVC, offering durability in tough conditions. The cable features two pairs of 24 AWG stranded tinned copper conductors within premium PVC insulation. A sturdy aluminum/polyester foil shield ensures moderate EMI protection at lower frequencies, complemented by a tinned copper drain wire for easy grounding. Nylon ripcord facilitates quick jacket stripping. The round construction simplifies installation, sealing, and routing. Operating within a temperature range of -30°C to +90°C, it maintains flexibility in cold environments and is rated at 300V. It is UL listed, recognized, CSA certified, and CE compliant, passing UL VW-1 and CSA FT4 flame tests. Suitable for applications in industrial, manufacturing, automotive, aerospace, automation, mining, oil, and gas sectors.
ALPHA WIRE 25492BK005 Multipair Industrial Cable Specifications:
- Construction: 2 pairs of 24 AWG stranded tinned copper conductors
- Insulation: Premium PVC
- Shield: Aluminum/polyester foil with drain wire
- Jacket: Polyurethane, 0.032" wall, color options including black
- Operating Temperature: -30°C to +90°C
- Voltage Rating: 300V
- Flame Test: UL VW-1, CSA FT4
- Certification: UL recognized, CSA certified, CE compliant
- Tensile Strength: 17.6 lbs maximum
- Bend Radius: 10× cable diameter
- Physical Dimensions: Outer diameter approximately 0.216" (max 0.229")
- Resistance: Shield DCR 15.9 Ω/1000 ft, Conductor DCR 26 Ω/1000 ft
- Capacitance: 28 pF/ft @ 1 kHz
- Other: Nylon ripcord for easy jacket removal
Buy the Alpha Wire 25492BK005 – Reliable Multipair Industrial Cable for Tough Environments
Order the Alpha Wire 25492BK005 multipair cable online today to ensure reliable, high-performance wiring for industrial, automotive, aerospace, and automation projects. Its tough polyurethane jacket provides excellent abrasion and tear resistance, making it ideal for demanding environments. Equipped with a foil shield for EMI protection and a tinned copper drain wire for grounding, this UL listed and CSA certified cable guarantees safety and durability. Its temperature range of -30°C to +90°C and flame-retardant properties ensure compliance with safety standards while supporting efficient installation and long-term operation in diverse industrial settings.
Buy Alpha Wire 25492BK005 now and experience durable, oil and abrasion resistant multipair cabling suitable for challenging industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 25492BK005?
You can click on the BUY or RFQ button to purchase 25492BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 25492BK005?
You can download the 25492BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 25492BK005?
ALPHA WIRE
