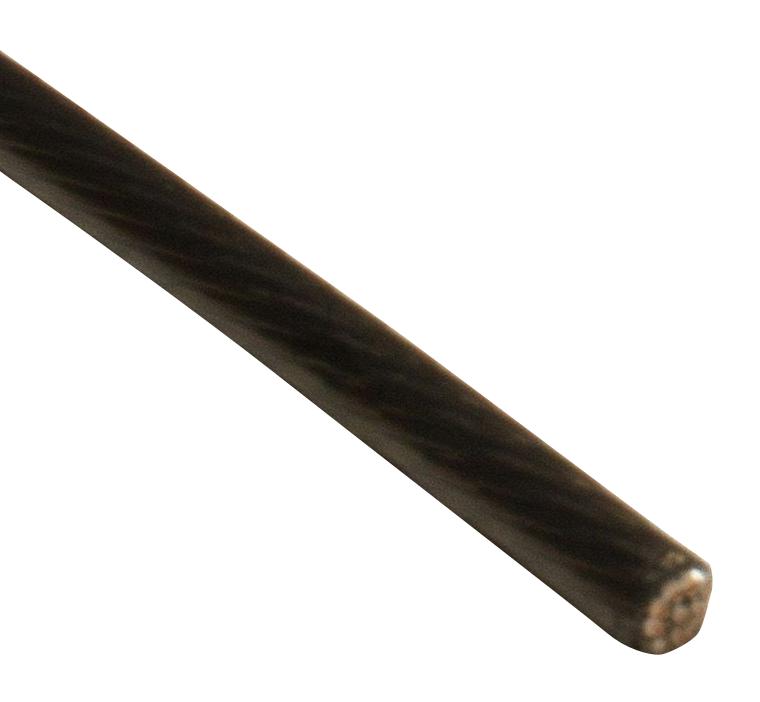

ALPHA WIRE 2618BK001 Hookup Wire
The product is a high-temperature, flexible hookup wire designed for electrical and electronic applications. It features 18 AWG copper conductors with 10% nickel plating, insulated with 0.007-inch wall PFA insulation available in multiple colors including white, black, red, green, yellow, blue, brown, and orange. Certified for UL 11905 300°C / 600V, it offers excellent resistance to sunlight, chemicals, and water, with a temperature range from -150°C to 300°C. Suitable for demanding environments, it provides reliable electrical performance and mechanical durability for industrial and electronic wiring projects.
ALPHA WIRE 2618BK001 Hookup Wire Specifications:
- Conductor: 18 AWG copper, 10% nickel plated
- Insulation: 0.007-inch wall, PFA material, available in multiple colors
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 14.9 lbs maximum
- Inductance: 0.03 H/ft nominal
- Conductor DCR: 6.3 Q/1000ft @20°C
- Flammability: UL 94V-0
- Applicable Standards: UL AWM STYLE 11905, sunlight, chemical, water resistant
- Certifications: RoHS2, RoHS3, REACH, China ROHS compliant
- Physical Dimensions: 6.5 x 4 x 2.5 inches (continuous length), 2.75 x 2 x 1.125 inches (splice length)
- Materials: Nickel-plated copper conductor, PFA insulation
Buy the Alpha Wire Series 711 hookup wire: 2618
Purchase your Alpha Wire Series 711 hookup wire online today to enjoy high-quality, flexible wiring solutions suitable for extreme temperatures up to 300°C. This 18 AWG copper wire with PFA insulation offers excellent chemical, water, and UV resistance, making it perfect for demanding environments. With UL certification for 600V and broad compliance with RoHS, REACH, and other standards, this wire ensures safety, durability, and reliable electrical performance. Shop now to upgrade your electrical installations with confidence and convenience.
Order your Alpha Wire Series 711 hookup wire today and ensure reliable, high-temperature electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2618BK001?
You can click on the BUY or RFQ button to purchase 2618BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2618BK001?
You can download the 2618BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2618BK001?
ALPHA WIRE
