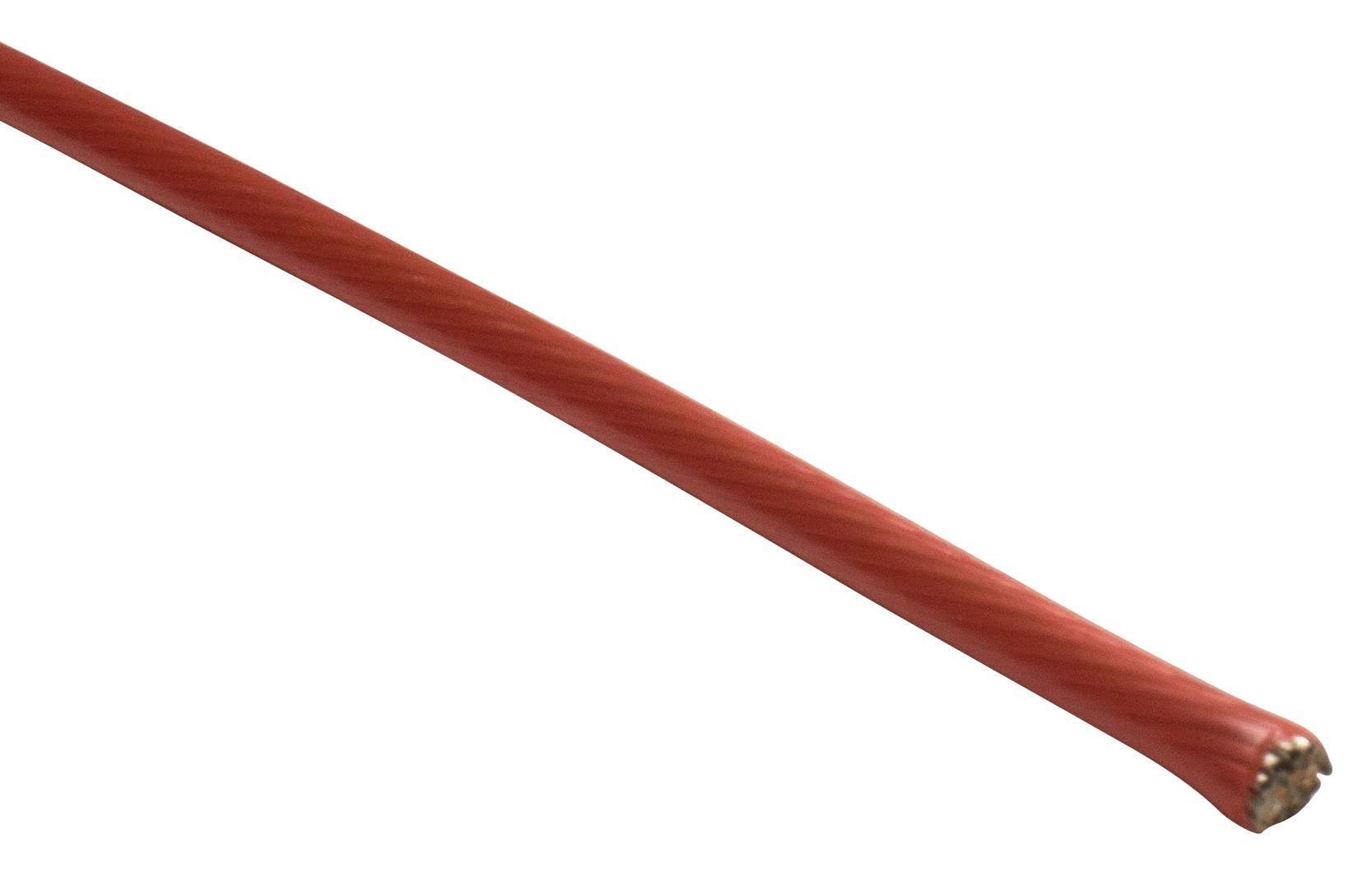

ALPHA WIRE 2618RD005 PFA Hook-up Wire
The ALPHA WIRE 2618 RD005 is a high-performance hook-up wire designed for use in a variety of industrial and commercial applications. Constructed with 18 AWG 10% Nickel Plated Copper conductor and a robust PFA insulation, this wire provides exceptional electrical performance and environmental protection. Its wide temperature range (-150°C to 300°C) and resistance to chemicals and sunlight make it ideal for harsh environments. Compliant with RoHS directives, the 2618 RD005 ensures safe and reliable operation in electrical and electronic equipment.
ALPHA WIRE 2618RD005 PFA Hook-up Wire Specifications:
- Conductor AWG: 18 (19/30)
- Conductor Material: 10% Nickel Plated Copper
- Insulation Material: PFA
- Insulation Wall Thickness: 0.007"
- Overall Diameter: 0.061+/- 0.002"
- Colors Available: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.03 μH/ft, Nominal
- Conductor DCR: 6.3 Ω/1000ft @20°C, Nominal
- UL Style: AWM/STYLE 11905
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Packaging 1000 FT: 6.5 x 4 x 2.5 inches
- Packaging 100 FT: 2.75 x 2 x 1.125 inches
Buy the 2618 RD005 ALPHA WIRE PFA Hook-up Wire | myMectronic
Purchase the ALPHA WIRE 2618 RD005 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2618RD005?
You can click on the BUY or RFQ button to purchase 2618RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2618RD005?
You can download the 2618RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2618RD005?
ALPHA WIRE
