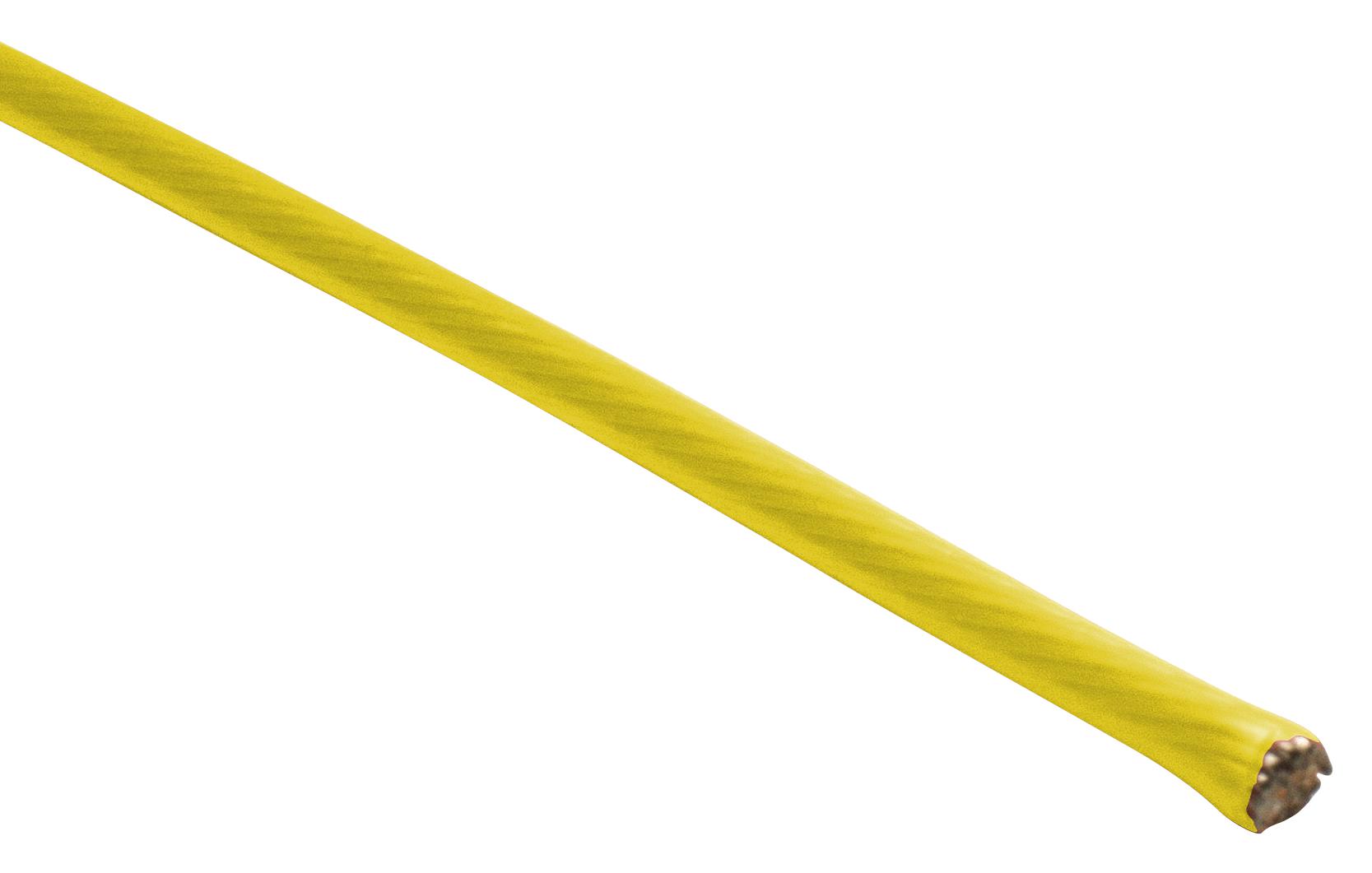

ALPHA WIRE 2618YL005 PFA Hook-Up Wire
The Alpha Wire 2618 YL005 is a high-performance hook-up wire designed for demanding environments. Constructed with 19/30 stranded 18 AWG nickel-plated copper conductor and a durable PFA insulation, this wire provides exceptional flexibility and resistance to chemicals, sunlight, and water. Its wide temperature range (-150°C to 300°C) and 600 VRMS voltage rating make it ideal for applications in aerospace, automotive, and industrial equipment where reliability and longevity are critical. The wire is RoHS compliant and meets EU Low Voltage Directive requirements, ensuring safe and environmentally responsible operation.
ALPHA WIRE 2618YL005 PFA Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 18 (19/30) AWG 10% Nickel Plated Copper
- Insulation: 0.007" Wall, Nom. PFA
- Insulation Diameter: 0.061+/- 0.002"
- Color(s): WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE
- UL: AWM/STYLE 11905
- Voltage Rating: 300°C / 600 VRMS
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs, Maximum
- Inductance: 0.03 μH/ft, Nominal
- Conductor DCR: 6.3 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 4 x 2.5 Continuous length
- Packaging 100 FT: 2.75 x 2 x 1.125 Continuous length
Buy the 2618 YL005 ALPHA WIRE PFA Hook-Up Wire | myMectronic
Purchase Alpha Wire 2618 YL005 securely and efficiently to ensure your project's success.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2618YL005?
You can click on the BUY or RFQ button to purchase 2618YL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2618YL005?
You can download the 2618YL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2618YL005?
ALPHA WIRE
