ALPHA WIRE 2620OR005 High-Temperature Wire

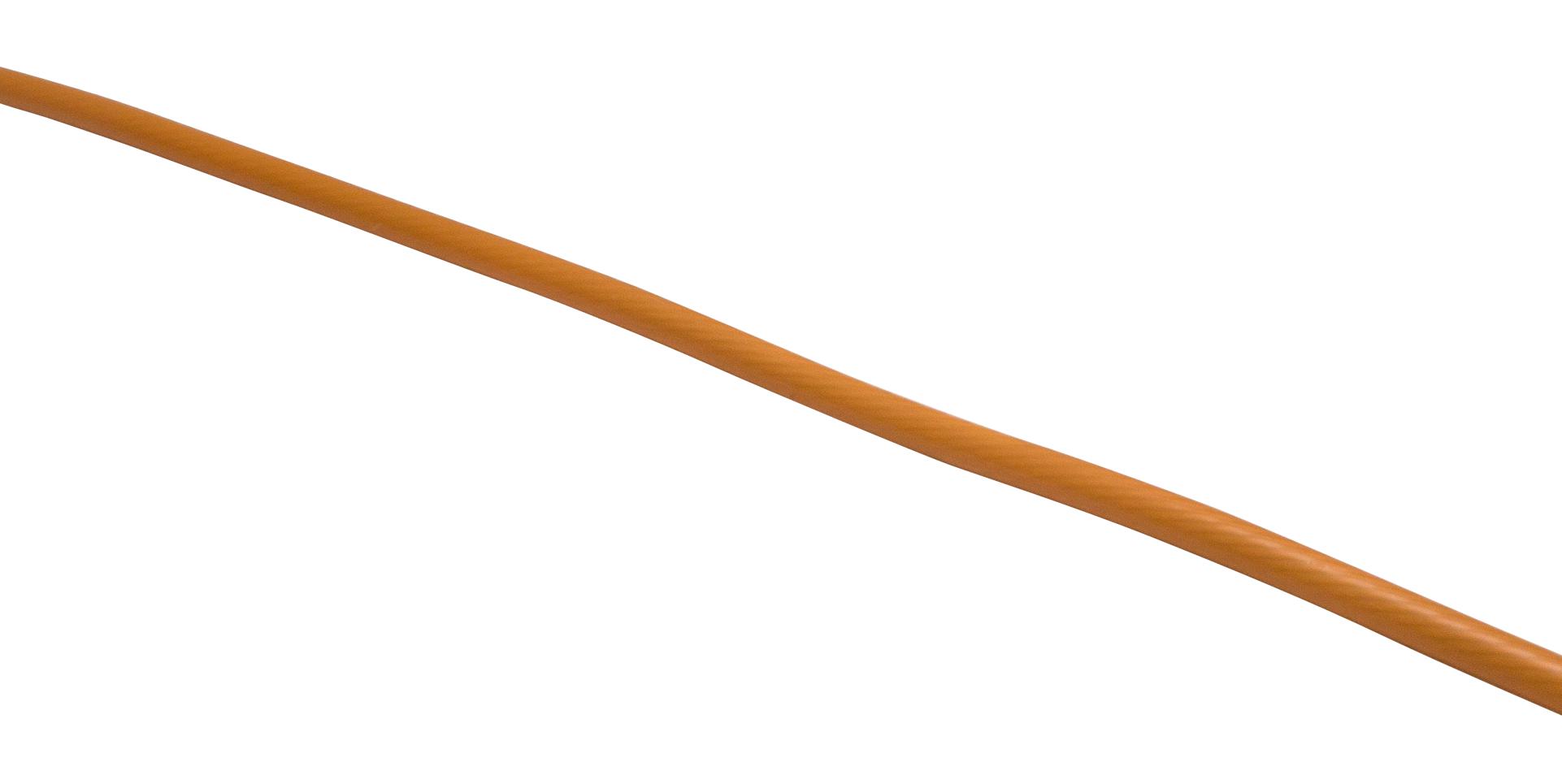

This electrical wire features a 0.007-inch wall PFA insulation in multiple colors including white, black, red, green, yellow, blue, brown, and orange. Designed for high temperature applications, it withstands temperatures from -150°C to 300°C and is rated for 600 V. Its construction offers excellent chemical, water, and sunlight resistance, suitable for demanding environments. The wire's copper conductor is 20 AWG, nickel-plated for durability, with a bend radius of 10 times its diameter, and a maximum pull tension of 9.6 lbs. Compliant with UL and EU standards, ideal for industrial, electronic, and electrical use.
ALPHA WIRE 2620OR005 High-Temperature Wire Specifications:
- Conductor: 20 AWG (19/32) Nickel-plated Copper
- Insulation: PFA, 0.007 inches wall thickness
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 9.6 lbs
- Inductance: 0.03 H/ft
- Conductive Resistance (DCR): 9.9 Q/1000ft at 20°C
- Applicable Standards: UL 11905, EU RoHS/REACH compliant
- Environmental: Sunlight, chemical, water resistant
- Spool Lengths: 100 ft and 1000 ft
Buy the Alpha Wire Series 711 High-Temperature Cable: 2620OR005
Order Alpha Wire 2620OR005 online today and benefit from a highly durable, 20 AWG cable with PFA insulation, rated for 600 V and operating from -150°C to 300°C. Perfect for demanding industrial, electronic, and harsh environmental applications that require chemical, water, and sunlight resistance. This reliable wire combines excellent mechanical and electrical properties, including a bend radius of 10 times its diameter and a maximum pull tension of 9.6 lbs. Secure your supply of premium electrical wire with quick online purchase options, shipping, and expert support.
Get Alpha Wire 2620OR005 today—built for high-temperature environments and long-lasting durability, ideal for industrial and electronic wiring needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620OR005?
You can click on the BUY or RFQ button to purchase 2620OR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620OR005?
You can download the 2620OR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620OR005?
ALPHA WIRE
