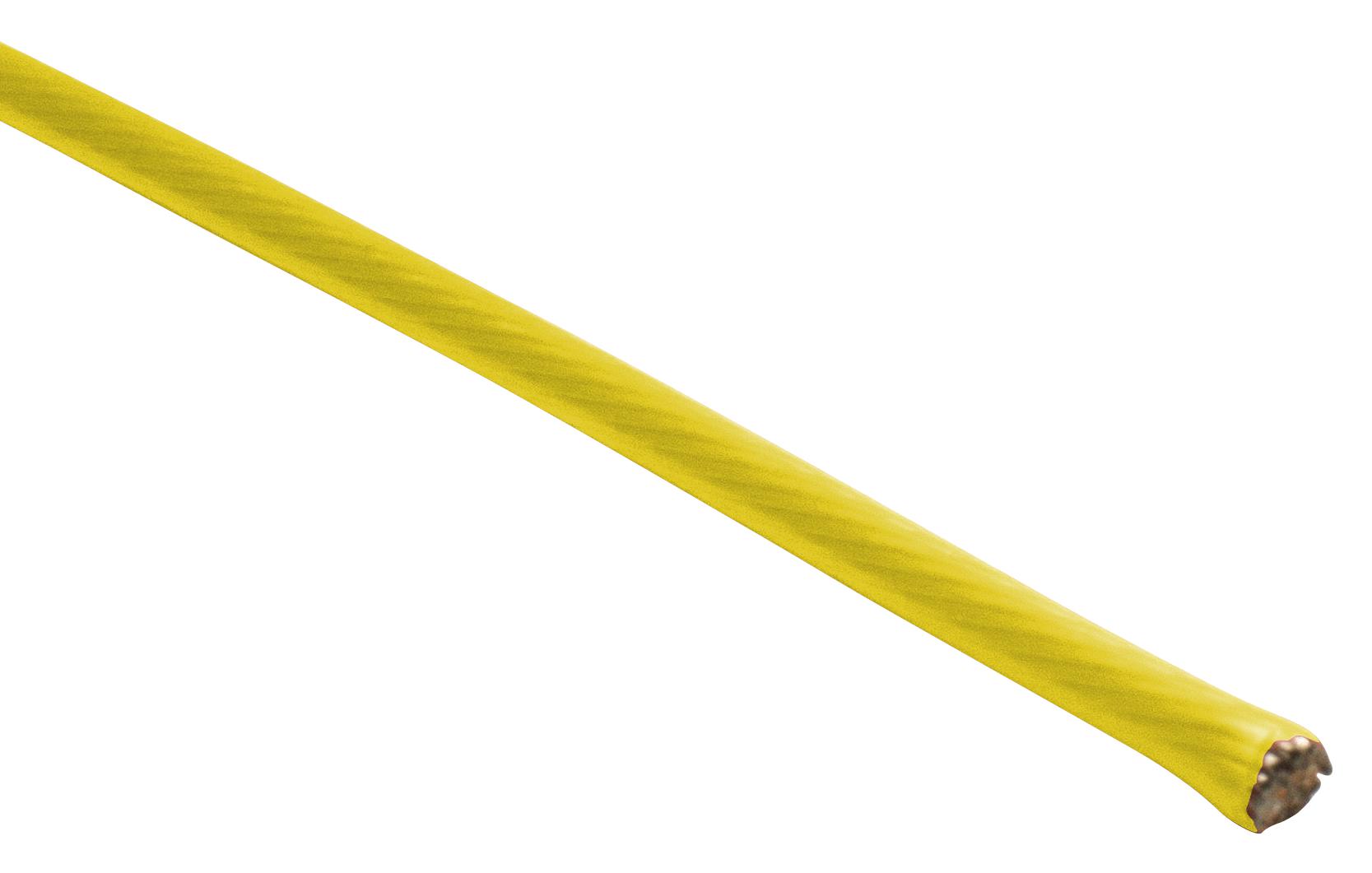

ALPHA WIRE 2620YL001 High-Temperature Insulated Wire
The product is a high-temperature, flexible, and chemical-resistant wire designed for electrical insulation and wiring applications. Constructed with a 0.007-inch wall PFA insulation on a copper conductor, it supports a temperature range of -150°C to 300°C and a voltage rating of 600 V. Its properties include a bend radius of 10 times the cable diameter and a maximum pull tension of 9.6 lbs. Suitable for environments resistant to sunlight, water, and chemicals, it complies with UL AWM 11905 standards and RoHS directives, making it ideal for demanding industrial and electronic applications.
ALPHA WIRE 2620YL001 High-Temperature Insulated Wire Specifications:
- Conductor Diameter: 20 AWG (19/32)
- Insulation Wall Thickness: 0.007 inches
- Insulation Material: PFA (Perfluoroalkoxy)
- Color Options: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: Max 9.6 lbs
- Voltage Rating: 600 V
- Inductance: 0.03 H/ft, Nominal
- Conductor Resistance: 9.9 Q/1000ft @20°C
- Environmental Resistance: Sunlight, Water, Chemical Resistant
- Applicable Standards: UL AWM 11905, RoHS Compliant, REACH compliant
- Cable Lengths Available: 1000 ft and 100 ft spools
- Flexibility and durability suitable for high temperature and harsh environment applications
Buy the Alpha Wire Series High-Temp Insulated Wire: 2620YL001
Purchase Alpha Wire 2620YL001 online today to ensure your projects benefit from flexible, high-temperature, chemical, and water-resistant wiring solutions. This high-quality wire is designed to withstand extreme environments with a temperature range of -150°C to 300°C and a voltage rating of 600 V. Its durable PFA insulation provides excellent chemical and UV resistance, making it suitable for industrial, electronic, and aerospace applications. Buy online now for fast delivery, competitive pricing, and reliable performance in your critical projects.
Buy Alpha Wire 2620YL001 now and experience unmatched reliability and performance for demanding electrical and electronic applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620YL001?
You can click on the BUY or RFQ button to purchase 2620YL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620YL001?
You can download the 2620YL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620YL001?
ALPHA WIRE
