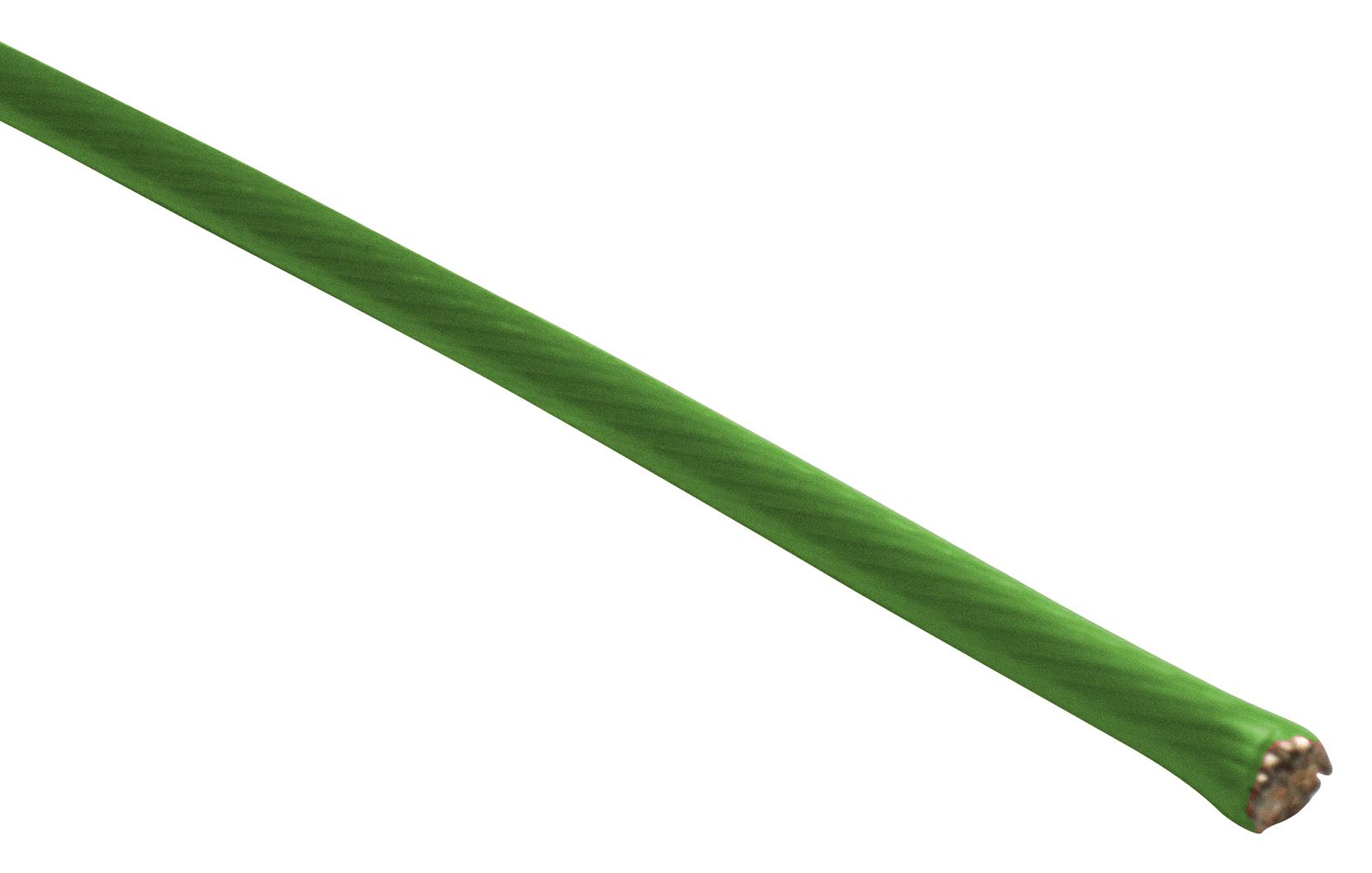

ALPHA WIRE 2622GR005 Hookup Wire
The 2622 series is a high-performance hookup wire designed for demanding environments, with a 1X 1 hookup construction. It features 22 AWG copper conductors with 10% nickel plating, 0.007-inch wall PFA insulation, and is rated for 600 V and temperature extremes from -150°C to 300°C. This versatile wire offers excellent chemical, water, and sunlight resistance, conforming to UL 11905 standards. Its durable design ensures reliable electrical connectivity for industrial, electronic, and automation applications, making it ideal for harsh conditions and high-temperature environments.
ALPHA WIRE 2622GR005 Hookup Wire Specifications:
- Conductor: 22 AWG copper, 19/34 strands, 10% nickel plated
- Insulation: 0.007-inch thick PFA, white, black, red, green, yellow, blue, brown, orange
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X cable diameter
- Pull Tension: 5.9 lbs maximum
- Inductance: 0.04 LH/ft
- Conductor DCR: 15.9 Q/1000ft at 20°C
- Outer Dimensions: Approximately 6.5 x 2 x 1.9 inches for spool, 2.75 x 1 x 1.125 inches for continuous length
- Compliance: UL AWM 11905, RoHS 2 and 3, REACH, California Prop 65 exempt
Buy the Alpha Wire Series 711 Hookup Wire: 2622GR005
Purchase the Alpha Wire Series 2622GR005 hookup wire online today to ensure your industrial projects benefit from high temperature resistance, flexible design, and excellent chemical and water resistance. This versatile 22 AWG copper wire with PFA insulation is rated for 600 volts and operates effectively from -150°C to 300°C. Perfect for demanding applications, it offers durability, safety compliance, and excellent electrical performance. Buy now to secure reliable connectivity for your industrial, electronic, or automation systems with fast, secure shipping.
Order your Alpha Wire Series 2622GR005 high-temp hookup wire today and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2622GR005?
You can click on the BUY or RFQ button to purchase 2622GR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2622GR005?
You can download the 2622GR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2622GR005?
ALPHA WIRE
