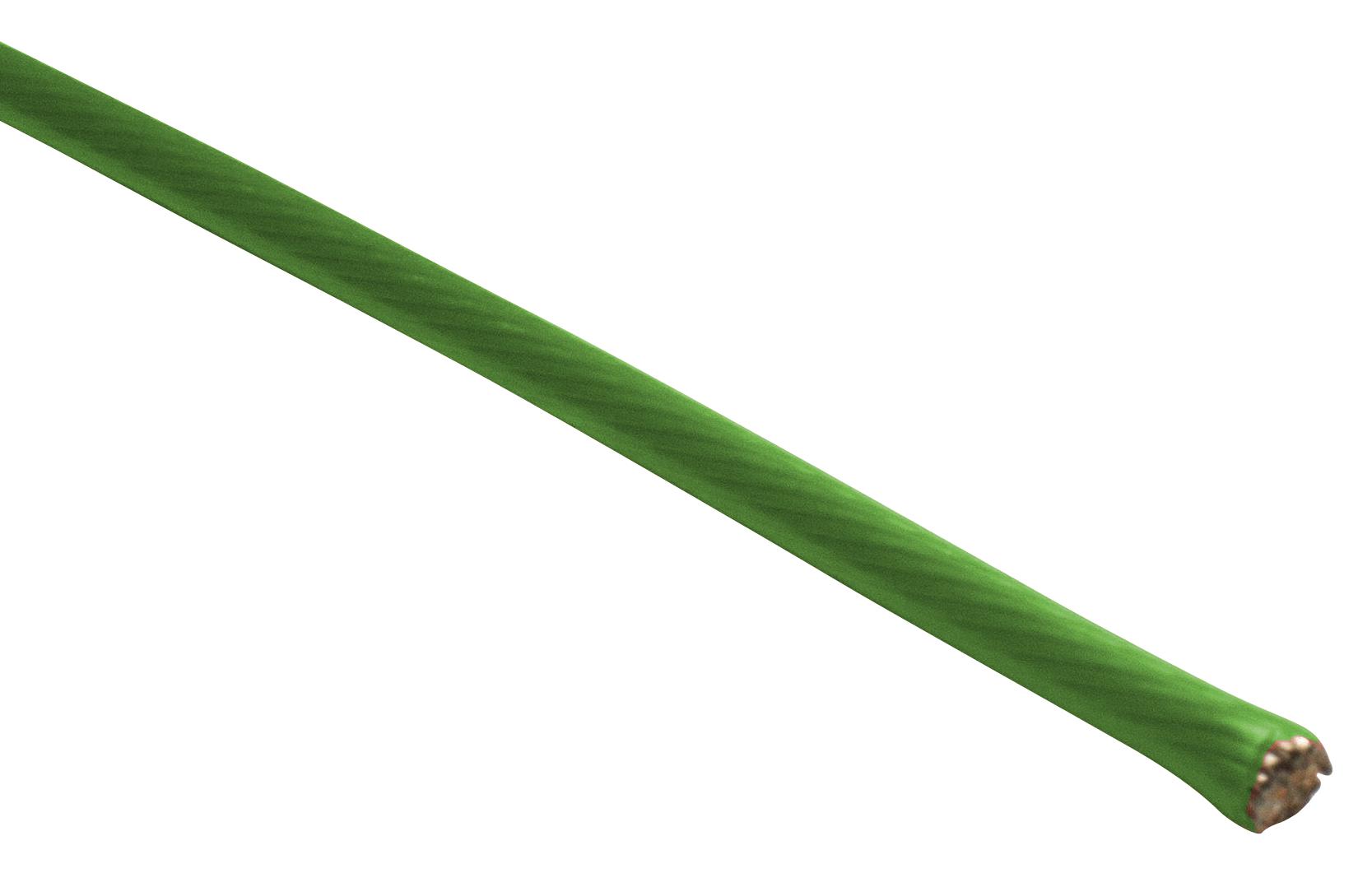

ALPHA WIRE 2624GR005 Hookup Wire
The product is a flexible, high-temperature hookup wire suitable for industrial electrical applications. It features a 24 AWG copper conductor with 10% nickel plating, insulated with 0.007-inch wall PFA in multiple colors including white, black, red, green, yellow, blue, brown, and orange. Certified for UL AWM STYLE 11905 with a temperature rating from -150°C to 300°C and a voltage rating of 600 V, it is resistant to sunlight, chemicals, and water, making it ideal for demanding environments with compliance to RoHS2, RoHS3, and REACH standards.
ALPHA WIRE 2624GR005 Hookup Wire Specifications:
- Conductor: 24 AWG, 19/36 strands, copper, nickel plated
- Insulation: PFA, 0.007 inch wall, multiple colors
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Insulation Resistance: Not specified, but chemical resistant
- Impact Resistance: Not specified
- Bend Radius: 10X cable diameter
- Weight: 3.7 pounds per 1000 feet
- Cable Dimensions: Flex Traverse 3.5 x 3 x 1.125 inches, Barrel 2.75 x 1 x 1.125 inches
- Compliance: UL AWM Style 11905, RoHS2, RoHS3, REACH, California Proposition 65 exempt
Buy the Alpha Wire Series 711 Hookup Wire: 2624GR005
Order Alpha Wire 2624GR005 hookup wire online today to benefit from superior temperature resistance, chemical and water resistance, and UL certification. This high-quality wire features a flexible design with a copper conductor plated with nickel for enhanced durability. Its insulation is made from PFA, ensuring excellent electrical performance in extreme environments from -150°C to 300°C. Perfect for industrial applications requiring high voltage up to 600 V, this wire also complies with RoHS and REACH standards, ensuring environmentally safe usage. Secure your supply chain by purchasing directly online and enjoy fast delivery.
Buy Alpha Wire 2624GR005 now and experience unmatched reliability and high-temperature performance for your industrial wiring needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2624GR005?
You can click on the BUY or RFQ button to purchase 2624GR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2624GR005?
You can download the 2624GR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2624GR005?
ALPHA WIRE
