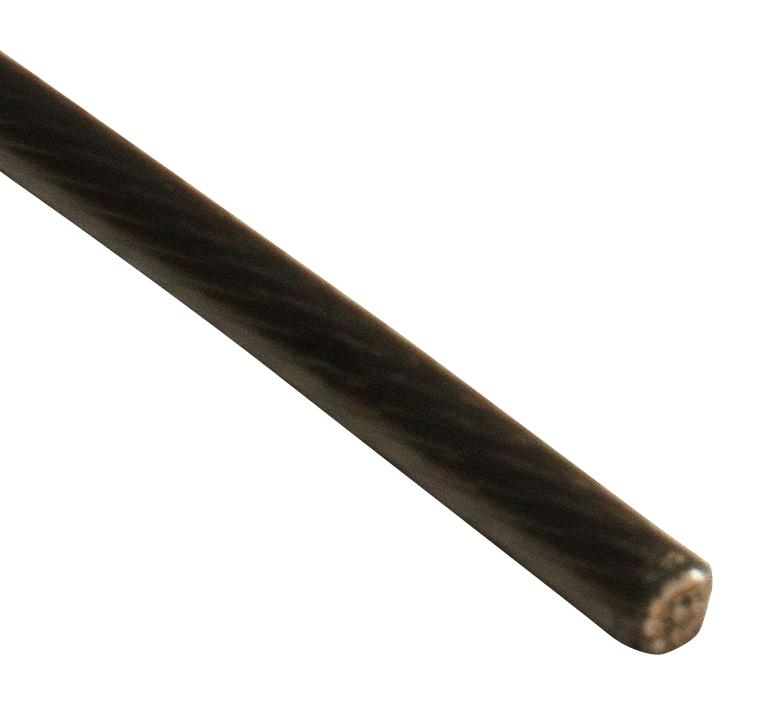

ALPHA WIRE 2626BK001 High-Temperature Electrical Wire
The product is a flexible, high-temperature-rated wire designed for electrical applications, with a heat resistance of up to 300°C. It features a 0.007-inch wall insulation made of PFA and copper conductors with 19/38 strands, nickel-plated for durability. Suitable for environments requiring chemical and water resistance, it complies with UL 11905 standard and RoHS directives. Its physical properties include a bend radius of 10 times the cable diameter and a maximum pull tension of 2.39 pounds. This versatile wire is ideal for demanding electrical and electronic projects requiring precise insulation and high thermal performance.
ALPHA WIRE 2626BK001 High-Temperature Electrical Wire Specifications:
- Diameter (Component 1): 0.019 inches
- Insulation Wall Thickness: 0.007 inches
- Insulation Material: PFA (Perfluoroalkoxy)
- Conductor Count: 19/38 strands
- Conductor Material: Nickel-plated copper
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 2.39 lbs
- Conductance Resistance: 40 Q/1000ft @20°C
- Inductance: 0.05 pH/ft
- UL Standard: 11905 300°C / 600V
- Compliance: RoHS 2 and RoHS 3 listed, EU and China RoHS compliant
- Environmental Resistance: Sunlight, chemical, water resistant
- Cable Lengths Available: 100 ft, 1000 ft spool
- Physical Dimensions: Flx Traverse x Barrel: 3.5 x 3 x 1.125 inches, Length: 2.75 x 1 x 1.125 inches continuous
- Material Composition: Nickel-plated, copper, PFA insulation
Buy the Alpha Wire Series 711 High-Temperature Wire: 2626
Purchase the Alpha Wire Series 711 high-temperature electrical wire, model 2626, online today. Designed for demanding applications with a maximum temperature of 300°C, it features PFA insulation, nickel-plated copper conductors, and is resistant to chemicals and water. This versatile wire has a 600V voltage rating, flexible design with a bend radius of 10X cable diameter, and is compliant with RoHS standards, ensuring safety and environmental compliance. Ideal for professional electrical or electronic projects requiring durability, high heat resistance, and excellent insulation properties.
Order your Alpha Wire Series 711 high-temperature wire today and ensure your electrical projects have reliable, heat-resistant insulation for demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2626BK001?
You can click on the BUY or RFQ button to purchase 2626BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2626BK001?
You can download the 2626BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2626BK001?
ALPHA WIRE
