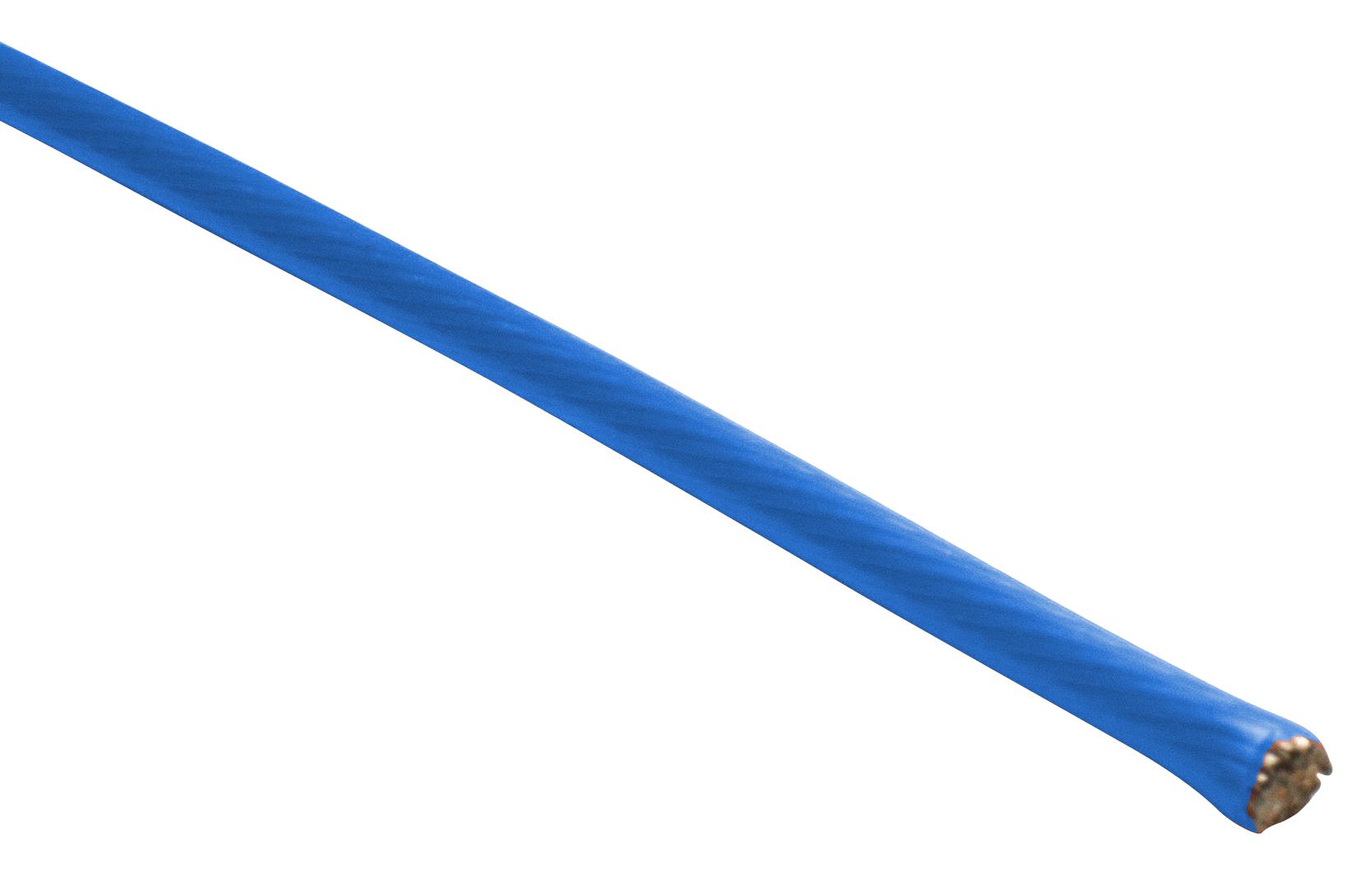

ALPHA WIRE 2626BL001 Resistant hookup wire
The product is a high-temperature resistant hookup wire with a 0.007-inch wall PFA insulation, suitable for environmental resistant applications including sunlight, chemicals, and water. It features 26 AWG copper conductors with 10% nickel plating, with a temperature range from -150°C to 300°C, and voltage rating of 600 V. It complies with numerous safety and environmental standards such as UL 11905, RoHS 3, REACH, and California Proposition 65. The wire's physical dimensions include a diameter of 0.019 inches for the conductor, with various spool sizes available for flexible installation. Ideal for industrial electrical systems requiring durable and compliant wiring solutions.
ALPHA WIRE 2626BL001 Resistant hookup wire Specifications:
- Conductor: 26 AWG, 19/38 strand copper with 10% nickel plating
- Insulation: PFA, 0.007 inch wall thickness, color options include WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 2.39 Lbs maximum
- Inductance: 0.05 pH/ft nominal
- Conductor DCR: 40 Q/1000ft at 20°C
- Diameter (conductor): 0.019 inches
- Outer diameter: approximately 0.033 inches
- Spool dimensions vary, typical: 3.5 x 3 x 1.125 inches, length options include 1000 ft and 100 ft spools
- Compliance: UL AWM Style 11905, RoHS 3, REACH, California Prop 65
- Temperature tolerance: -150°C to +300°C
Buy the Alpha Wire Series 711 Hookup Wire: 2626BL001
Purchase Alpha Wire 2626BL001 online today to ensure your electrical projects benefit from durable, high-temperature twisted hookup wire with PFA insulation. This versatile wire is designed for demanding environments, offering excellent chemical and water resistance along with a wide temperature range from -150°C to 300°C. It features UL approval, RoHS compliance, and robust physical and electrical properties to meet industrial standards. Order now for reliable connectivity in complex electrical installations, with quick delivery and guaranteed quality for your engineering needs.
Get Alpha Wire 2626BL001 today—built for high-temperature resilience, environmental resistance, and industry-standard safety compliance.
