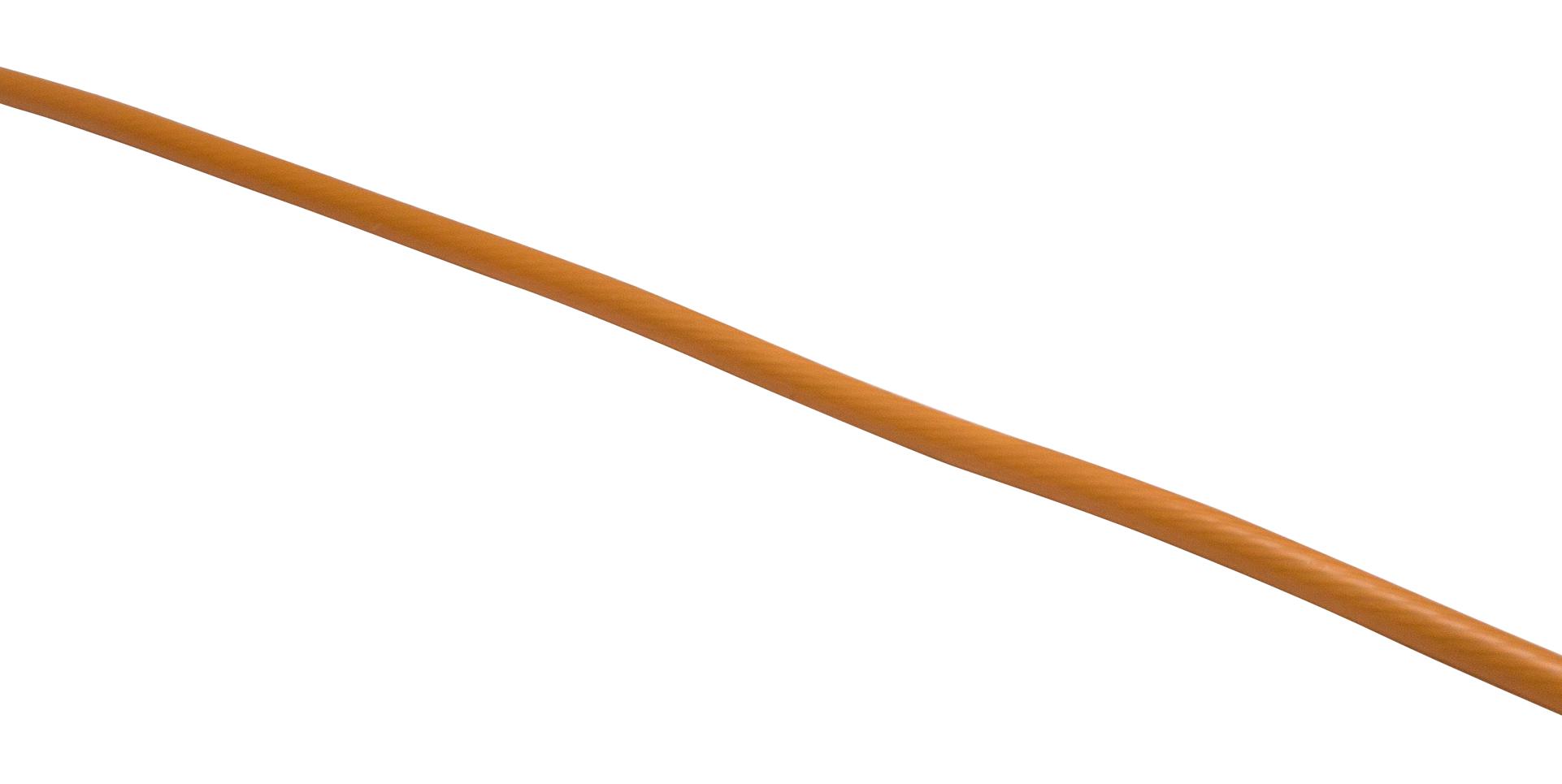

ALPHA WIRE 2626OR001 Insulated Wiring Cable
This high-performance wiring cable features 26 AWG copper conductors with nickel plating, insulated with 0.007-inch wall PFA material. Designed for demanding environments, it meets UL 11905 standards with a 300°C/600V rating, and resistances to sunlight, chemicals, and water. Its temperature range spans from -150°C to 300°C, with a bend radius of 10 times the cable diameter, and maximum pull tension of 2.39 lbs. Excellent for industrial, electronic, and control applications requiring reliability and durability in extreme conditions.
ALPHA WIRE 2626OR001 Insulated Wiring Cable Specifications:
- Conductor Gauge: 26 AWG (19/38 strands), Nickel plated copper
- Insulation Wall Thickness: 0.007 inches, PFA material
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Maximum Pull Tension: 2.39 lbs
- Bend Radius: 10X cable diameter
- Inductance: 0.05 pH/ft
- Conductor Resistance: 40 Q/1000ft at 20°C
- Applicable Standards: UL 11905, 300°C / 600 V rating, Sunlight, Chemical, Water Resistant
- Physical Dimensions: Flax traverse x barrel = 3.5 x 3 x 1.125 inches, continuous length options
Buy the Alpha Wire 2626 – Reliable Electronic Wiring for Industrial Applications
Order Alpha Wire 2626 online now for dependable high-performance wiring designed for extreme temperatures and harsh environments. This 26 AWG insulated cable features PFA insulation, UL 11905 compliance, and resistance to sunlight, chemicals, and water. Its broad temperature range from -150°C to 300°C ensures safe operation in demanding conditions. With a 600V rating and durable construction, this cable is ideal for industrial automation, control systems, and electronic equipment requiring reliable, long-lasting connectivity. Purchase today for quality and durability.
Get Alpha Wire 2626 today—built for high-temperature, chemical-resistant industrial wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2626OR001?
You can click on the BUY or RFQ button to purchase 2626OR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2626OR001?
You can download the 2626OR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2626OR001?
ALPHA WIRE
