ALPHA WIRE 2626OR005 High-Temperature Hookup Wire
The product is a high-temperature resistant hookup wire designed for electrical applications, suitable for environments up to 300°C. Made with 26 AWG copper conductor, nickel-plated, and insulated with 0.007-inch wall PFA insulation. It features multiple color options including white, black, red, green, yellow, blue, brown, and orange. Certified for UL AWM style 11905, this wire offers sunlight, chemical, and water resistance, with a voltage rating of 600 V and a temperature range from -150°C to 300°C. Perfect for industrial wiring requiring durability and compliance in harsh conditions.
ALPHA WIRE 2626OR005 High-Temperature Hookup Wire Specifications:
- Conductor: 26 AWG, 19/38 strands, Nickel-plated copper
- Insulation: 0.007 inch wall, PFA, White, Black, Red, Green, Yellow, Blue, Brown, Orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 2.39 pounds maximum
- Flammability: UL 94V-0
- Inductance: 0.05 pH/ft
- Conductor DCR: 40 ohms/1000ft at 20°C
- Applicable with European RoHS 2 & 3 directives, REACH compliant, free of SVHC substances
- Spool dimensions: 3.5 x 3 x 1.125 inches (continuous), 2.75 x 1 x 1.125 inches (continuous length)

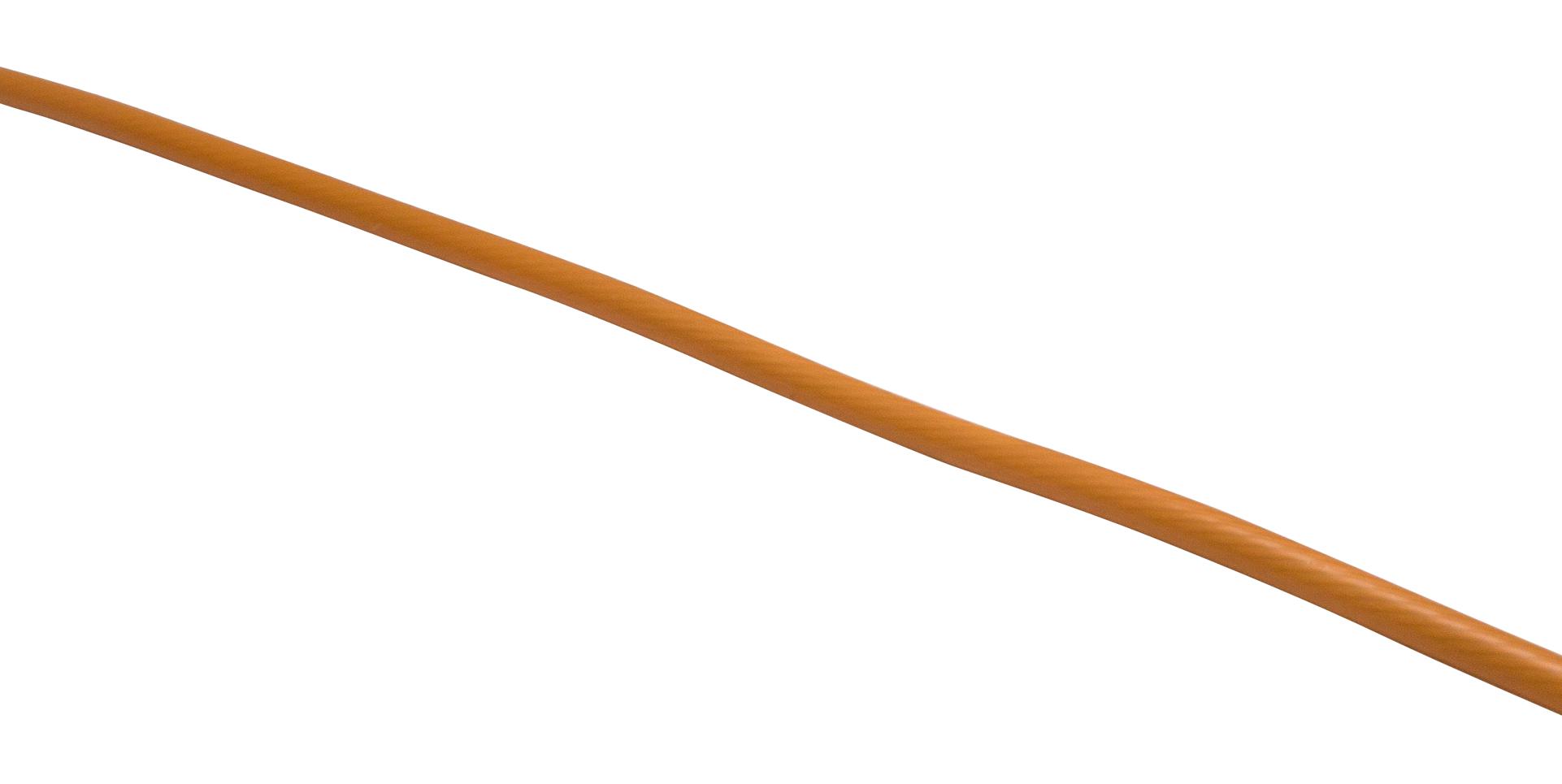

Buy the Buy Alpha Wire Part Number 2626OR005 Online
Order Alpha Wire high-temperature hookup wire with part number 2626OR005 online today. This durable wire features nickel-plated copper conductors insulated with PFA, rated for 600 V and capable of operating from -150°C to 300°C. Perfect for industrial applications requiring heat resistance, chemical, and water resistance. Available in multiple colors, with precise dimensions and certifications ensuring compliance with UL and RoHS standards. Purchase now to ensure reliable performance in harsh environments and streamline your electrical projects with ease.
Buy Alpha Wire 2626OR005 now and experience unmatched durability, heat resistance, and reliable electrical performance in demanding environments.
