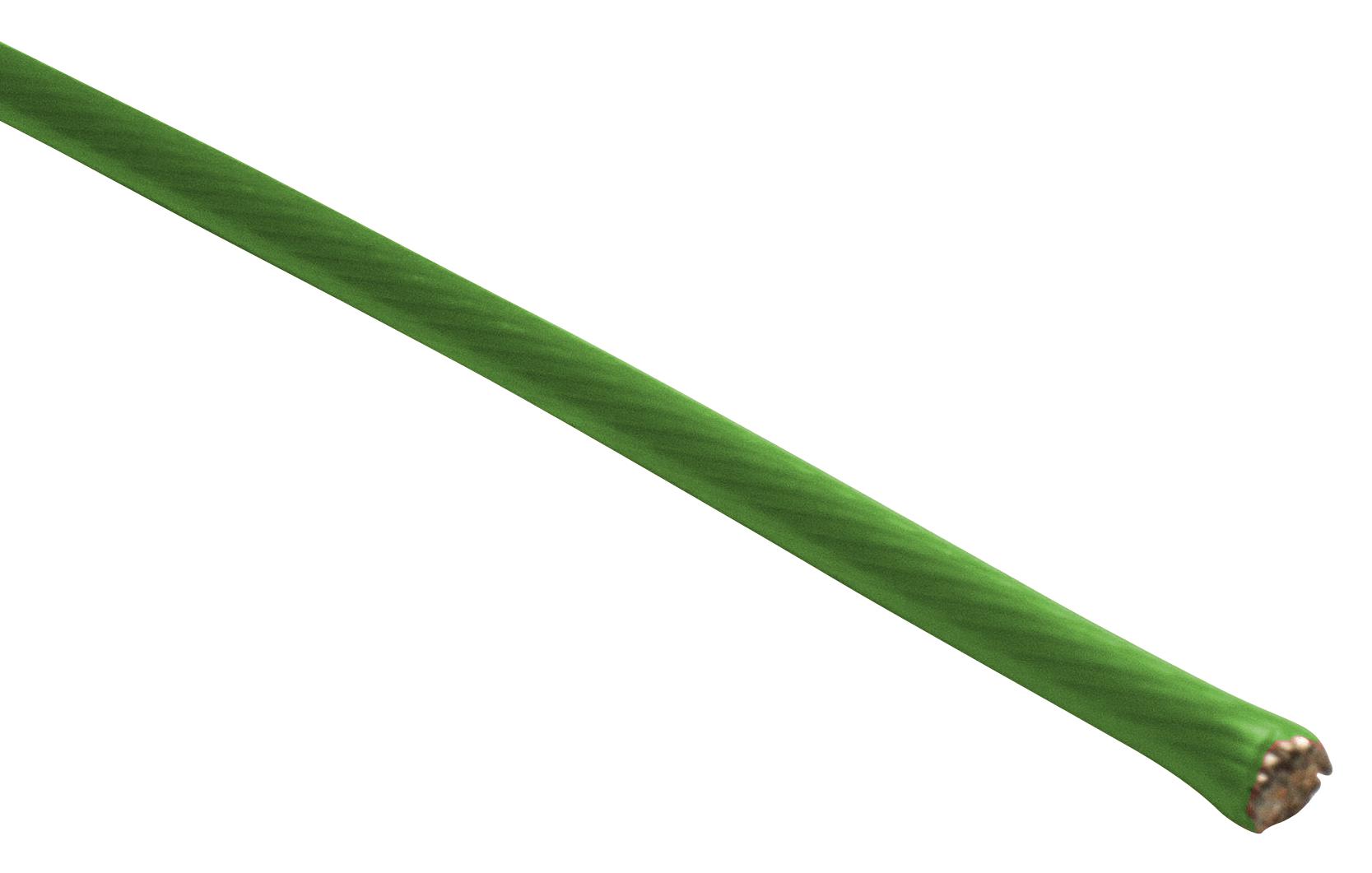

ALPHA WIRE 2630GR001 PFA Hook-up Wire
The ALPHA WIRE 2630 GR001 is a high-performance hook-up wire designed for demanding applications. Constructed with a 30 AWG nickel-plated copper conductor and a robust PFA insulation, this wire offers excellent flexibility, chemical resistance, and a wide operating temperature range from -150°C to 300°C. It is commonly used in aerospace, automotive, and industrial equipment where reliability and durability are critical. The wire's sunlight resistance makes it suitable for outdoor applications, and its compliance with RoHS directives ensures environmentally responsible usage. Available in 1000ft and 100ft put-ups, the 2630 GR001 provides a versatile solution for various wire harnessing and connection needs.
ALPHA WIRE 2630GR001 PFA Hook-up Wire Specifications:
- Conductor Material: 1 X 1 HOOKUP, 30 (7/38) AWG 10% Nickel Plated Copper
- Insulation Material: 0.006" Wall, Nom. PFA
- Insulation Diameter: 0.024+/- 0.002"
- Colors Available: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE
- UL Rating: AWM/STYLE 11905, 300°C / 600 VRMS
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 0.88 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.06 μH/ft, Nominal
- Conductor DCR: 107 Ω/1000ft @20°C, Nominal
- 1000 FT Dimensions: 3.5 x 3 x 1.125 inches (Continuous length)
- 100 FT Dimensions: 2.75 x 1 x 1.125 inches (Continuous length)
- RoHS Compliance: Compliant
- REACH Compliance: Compliant
- Lead Limit: 0.1% by weight (1000 ppm)
- Mercury Limit: 0.1% by weight (1000 ppm)
- Cadmium Limit: 0.01% by weight (100 ppm)
- Hexavalent Chromium Limit: 0.1% by weight (1000 ppm)
- PBB Limit: 0.1% by weight (1000 ppm)
- PBDE Limit: 0.1% by weight (1000 ppm)
- DEHP Limit: 0.1% by weight (1000 ppm)
- BBP Limit: 0.1% by weight (1000 ppm)
- DBP Limit: 0.1% by weight (1000 ppm)
- DIBP Limit: 0.1% by weight (1000 ppm)
