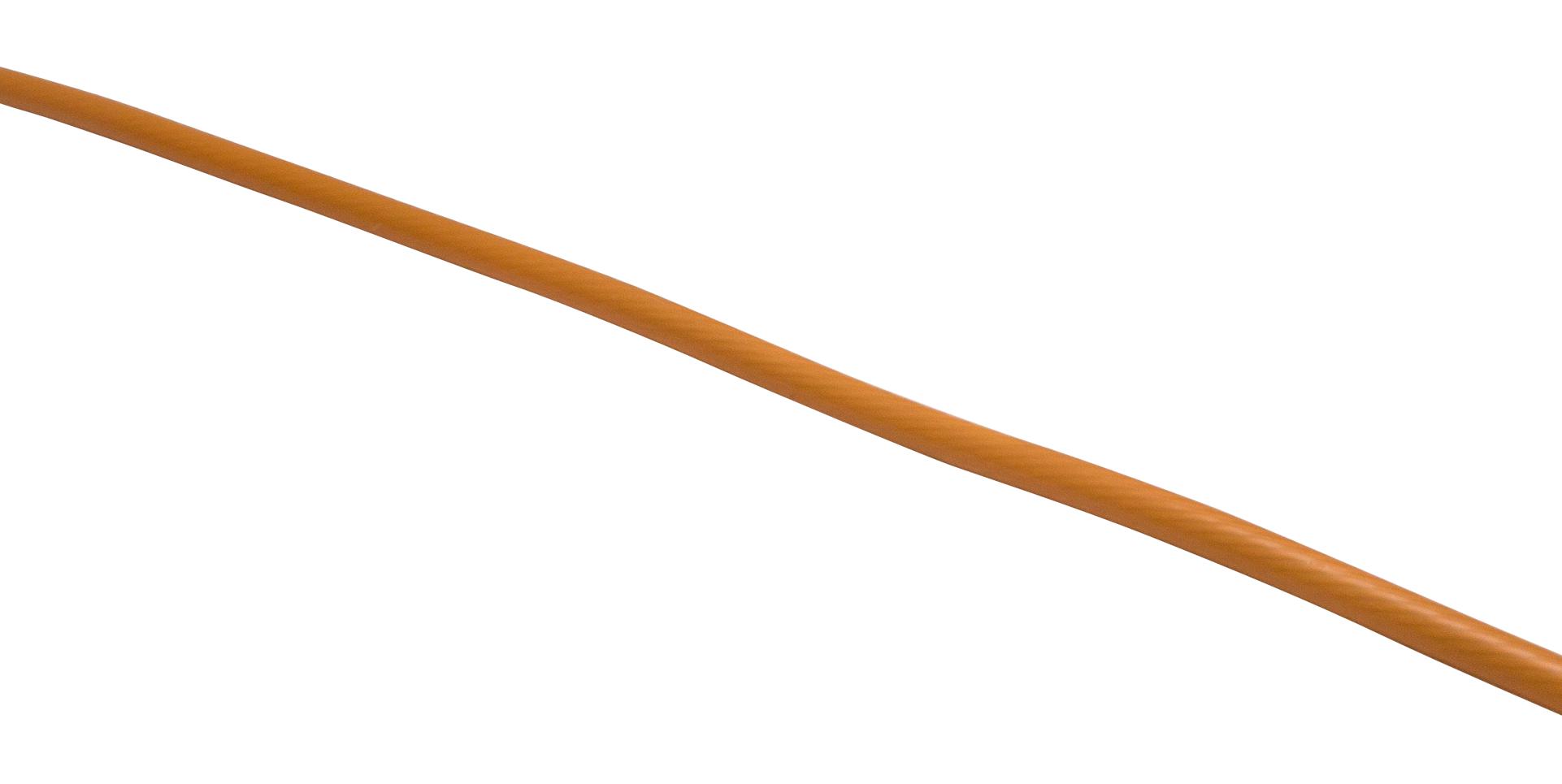

ALPHA WIRE 2632OR001 Hookup Wire
The product is a high-performance hookup wire designed for industrial and electronic applications, featuring a 32 AWG solid copper conductor with nickel plating, insulated with 0.006-inch wall PFA in multiple colors, including white, black, red, green, yellow, blue, brown, and orange. It is sunlight and water-resistant, compliant with EU and US environmental directives like RoHS and REACH, and rated for temperatures from -150°C to 300°C. The wire has a voltage rating of 600 V, low inductance, and is available in continuous lengths of 100 and 1000 feet, suitable for demanding electrical wiring projects.
ALPHA WIRE 2632OR001 Hookup Wire Specifications:
- Conductor: 32 AWG solid copper, Nickel plated
- Insulation: PFA, wall thickness 0.006 inches
- Color options: white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Inductance: 0.07 LH/ft, nominal
- Conductor DCR: 184 Ω/1000ft at 20°C
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 0.5 lbs
- Lengths: 100 feet, 1000 feet
- Outer Dimensions: 2.75 x 2 x 1.125 inches (continuous length), spool may vary
Buy the Buy Alpha Wire Part Number 2632OR001 Online
Purchase the reliable alpha wire hookup cable 2632OR001 online today for your electrical projects. Designed for high performance with a temperature range from -150°C to 300°C, this wire features a nickel-plated copper conductor insulated with high-quality PFA, resistant to sunlight, water, and chemicals. Available in multiple colors and lengths, it is perfect for demanding environments requiring flexible, durable wiring solutions. Get your supply now, and ensure your electrical installations are safe, efficient, and compliant with environmental standards.
Order your Alpha Wire 2632OR001 hookup wire today and ensure reliable electrical connections for your industrial or electronic projects.
