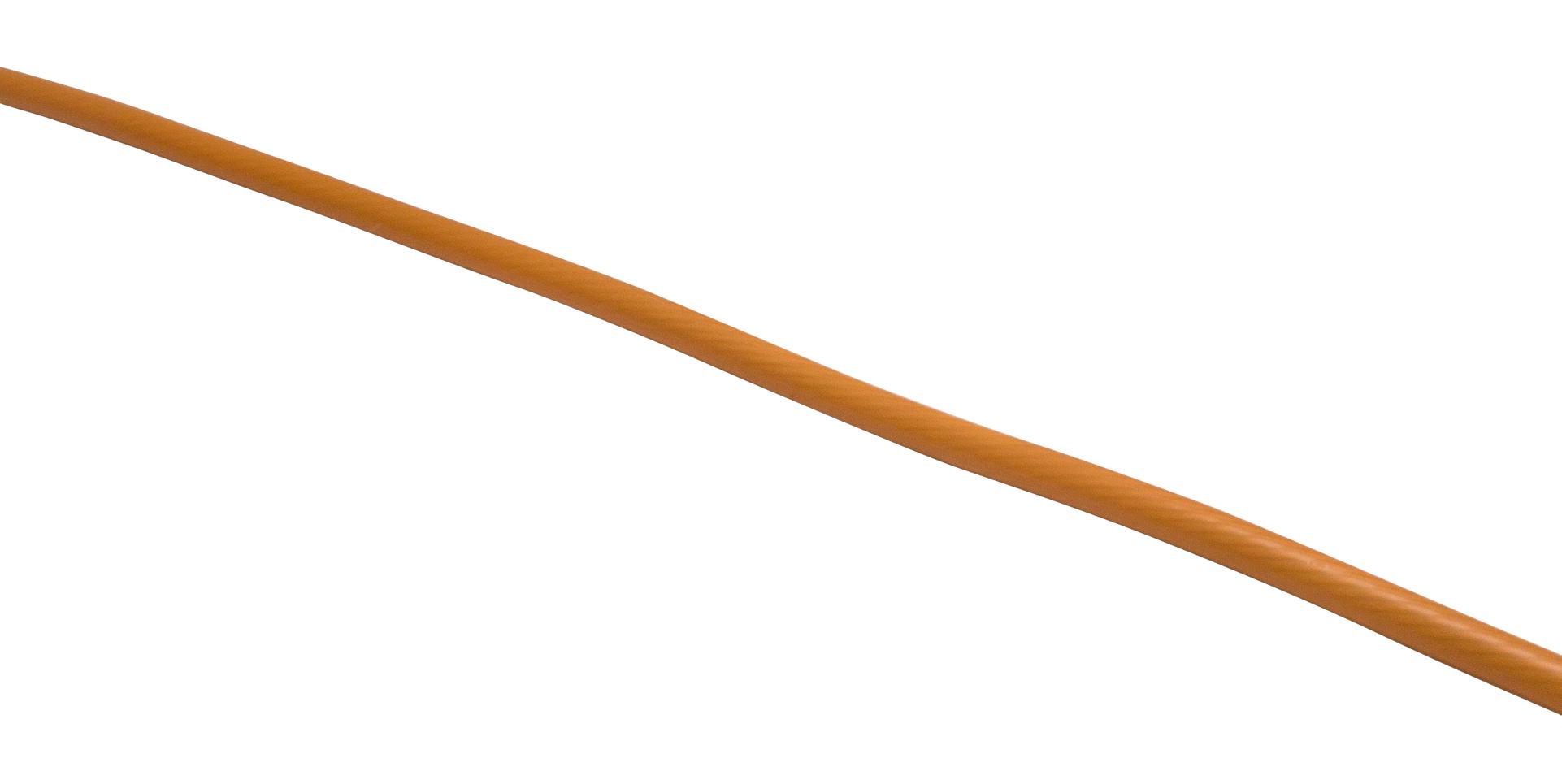

ALPHA WIRE 2636OR001 High-Temperature Resistant Wire
The product is a high-performance, sunlight and chemical resistant wire designed for industrial applications. Constructed with 36 AWG solid nickel-plated copper conductors and insulated with 0.006-inch wall PFA, it ensures durability in harsh environments. Rated for 600 V and operating from -150°C to 300°C, it features a bend radius of 10 times cable diameter and a maximum pull tension of 0.2 lbs. It complies with European RoHS directives, suitable for water-resistant and chemical-resistant applications, making it ideal for industrial, military, and aerospace use.
ALPHA WIRE 2636OR001 High-Temperature Resistant Wire Specifications:
- Conductor: 36 AWG solid nickel-plated copper
- Insulation: 0.006-inch wall PFA, white, black, red, green, yellow, blue, brown, orange colors
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X cable diameter
- Pull Tension: 0.2 lbs maximum
- Electrical Properties: Inductance 0.09 LH/ft, DCR 471 O/1000ft @20°C
- Cable Lengths: 1000 FT, 100 FT
- Flamability: UL 94V-0
- Certifications: RoHS, REACH, China RoHS
- Physical Dimensions: 2.75 x 2 x 1.125 inches (continuous length)
- Material: Nickel-plated copper, PFA insulation
Buy the Alpha Wire 2636 U– Reliable High-Temperature Resistance for Industrial Applications
Order Alpha Wire 2636 online today for a high-quality, sunlight and chemical resistant wire designed to withstand extreme temperatures ranging from -150°C to 300°C. With 36 AWG solid nickel-plated copper conductors and durable PFA insulation, this wire ensures reliable electrical performance, superior flexibility, and water resistance. It is ideal for industrial, military, and aerospace applications where durability and safety are critical. Purchase now to benefit from fast shipping and expert support, ensuring your projects meet the highest standards of quality and compliance.
Get Alpha Wire 2636 today—built for durability and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2636OR001?
You can click on the BUY or RFQ button to purchase 2636OR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2636OR001?
You can download the 2636OR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2636OR001?
ALPHA WIRE
