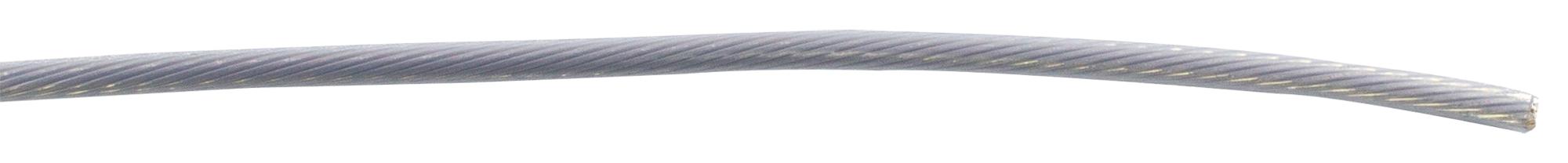

ALPHA WIRE 2930BL001 Hook-up Wire
The Alpha Wire 2930 BL001 is a high-temperature hook-up wire engineered for demanding applications such as oil and gas, semiconductor, energy, and military sectors. Constructed with a nickel-plated copper conductor and ECA fluoropolymer insulation, it withstands temperatures from -150°C to +300°C. The wire features a compact design with an outer diameter of approximately 0.51mm and 0.10mm insulation thickness. It complies with UL, EU low voltage directives, and RoHS standards, offering excellent chemical, UV, water resistance, and reliable electrical characteristics, including a voltage rating of 600V and low inductance, ensuring enduring performance in critical environments.
ALPHA WIRE 2930BL001 Hook-up Wire Specifications:
- Conductor Material: Nickel-plated Copper
- Insulation: ECA fluoropolymer, 0.004 inch wall
- Insulation Thickness: 0.020 +/- 0.002 inch
- Outer Diameter: approximately 0.51 mm
- Temperature Range: -150°C to +300°C
- Voltage Rating: 600V
- Inductance: 0.05 µH/ft, Nominal
- Conductor Resistance: 107 Ω/1000 ft @20°C
- Minimum Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 0.88 lbs
- Length: 1000 feet
- Color: Blue
- Wire Size: 30 AWG (7/38 AWG strands)
Buy the AlphaWire Series ThermoThin Hook-up Wire: 2930BL001
Order the AlphaWire 2930BL001 hook-up wire online for your high-temperature electrical needs. Designed for demanding applications, this wire features a nickel-plated copper conductor and fluoropolymer insulation capable of withstanding temperatures from -150°C to +300°C. Its compact size and UL listing ensure safety and performance in oil, gas, semiconductor, energy, and military environments. Precise specifications include a 600V rating, low inductance, and excellent chemical, UV, and water resistance. Purchase now for durable, space-saving, and top-quality electrical wiring solutions.
Get AlphaWire 2930BL001 today—built for high-temperature and reliable electrical connections in critical environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2930BL001?
You can click on the BUY or RFQ button to purchase 2930BL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2930BL001?
You can download the 2930BL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2930BL001?
ALPHA WIRE
