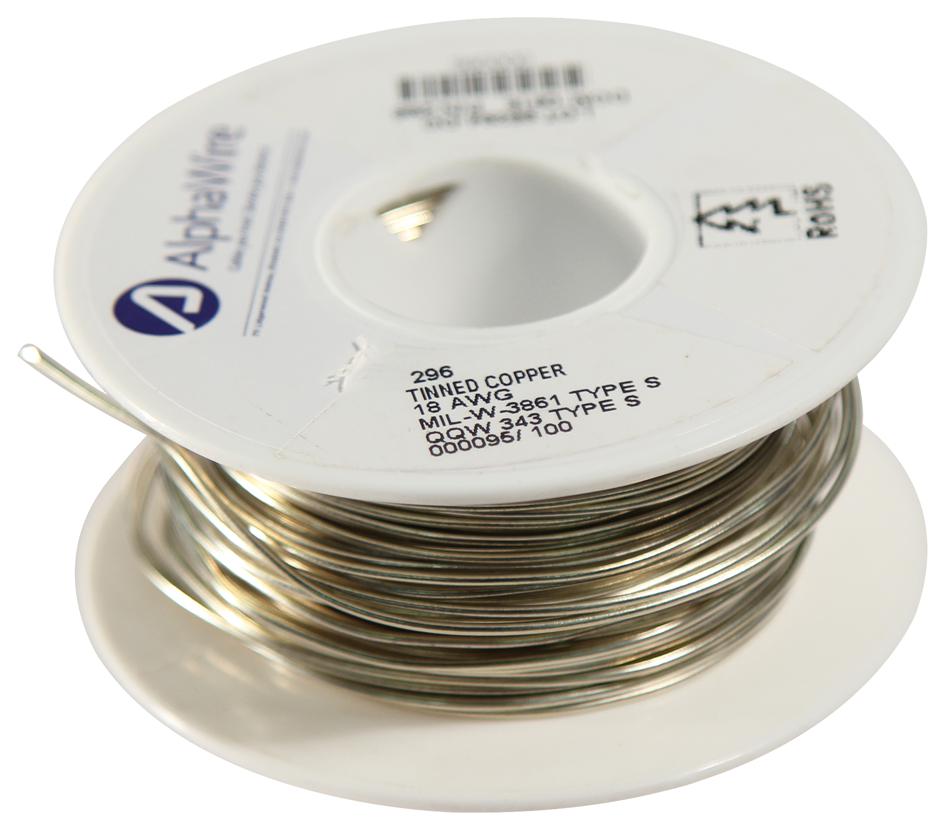

ALPHA WIRE 296SV005 Bus Bar Wire
The 296SV005 is a 100-foot length of 18 AWG bus bar wire made from electrolytic soft-drawn and annealed solid tin-plated copper conductor. This CID AA-59551 type S wire offers a reliable solution for transmitting power in vital electrical systems. It complies with REACH regulation (EC 1907/2006). Suitable applications include consumer electronics and power management, providing excellent electrical performance, flexibility, and safety. Crafted to meet industry standards, this wire ensures optimal conductivity, durability, and RoHS compliance for high-quality electrical installations and maintenance.
ALPHA WIRE 296SV005 Bus Bar Wire Specifications:
- Conductor Material: Tin-plated copper
- Conductor Size: 18 AWG
- Length: 100 feet (approximate 30.48 meters)
- Diameter: Not specified but suitable for bus bar connections
- Temperature Range: 0 to 200°C
- flexibilty: Bend Radius 10X Cable Diameter
- Voltage Rating: Not specified
- DCR: 6.6 O/1000ft @20°C
- Applicable Standards: CID AA-59551, ASTM-B33
- Packaging: 1000 FT flange x 3.5 x 1.125 inches; 100 FT spool 2.75 x 1 x 1.125 inches
- RoHS & REACH Compliant: Yes
- Hazardous Substances Limits: Lead 0.1%, Mercury 0.1%, Cadmium 0.01%, Hexavalent Chromium 0.1%, PBB and PBDE 0.1%, various phthalates 0.1%
Buy the AlphaWire Series Bus Bar Wire: 296SV005
Purchase the AlphaWire 296SV005 online today for high-quality power transmission solutions suitable for electronic and electrical systems. This 100-foot long 18 AWG tin-plated copper wire is designed for durability, excellent conductivity, and compliance with RoHS and REACH standards. Its flexible and reliable construction makes it ideal for applications in consumer electronics, power management, and electrical installations. Designed to meet stringent standards, this wire ensures safe, efficient, and long-lasting electrical connections, providing excellent value for professional and industrial use.
Get AlphaWire 296SV005 today—built for reliable power transmission in electronic and electrical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 296SV005?
You can click on the BUY or RFQ button to purchase 296SV005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 296SV005?
You can download the 296SV005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 296SV005?
ALPHA WIRE
