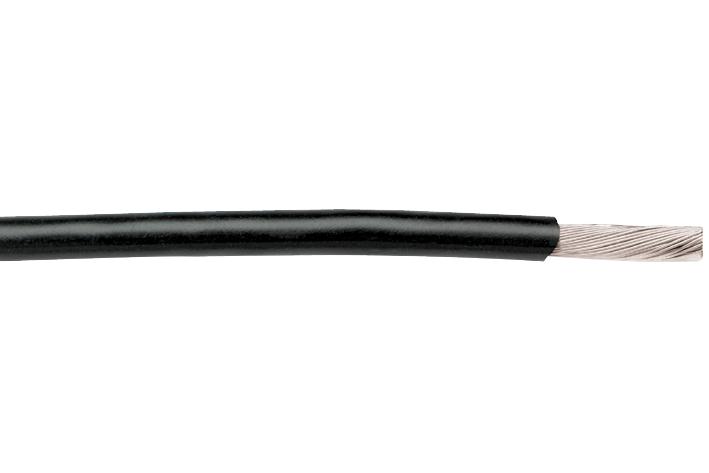

ALPHA WIRE 3048BK005 Hook Up Wire

The ALPHA WIRE 3048 BK005 is a versatile hook-up wire designed for general-purpose applications. Constructed with 28 AWG stranded copper conductors and a durable PVC insulation, this wire provides reliable performance in various environments. It is available in a range of colors to facilitate easy identification and organization. Meeting both UL and CSA standards, the 3048 BK005 is suitable for use in appliances, electronics, and industrial equipment where flexibility, durability, and electrical safety are paramount. Its RoHS compliance ensures environmentally responsible usage.

ALPHA WIRE 3048BK005 Hook Up Wire Specifications:

  • Component 1: 1 X 1 HOOKUP
  • Conductor: 28 (7/36) AWG TC
  • Insulation: 0.016" Wall, Nom. PVC
  • Insulation Diameter: 0.047+/- 0.002
  • Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE, SLATE, VIOLET
  • UL Style: AWM/STYLE 1007, AWM/STYLE 1569
  • UL Voltage Rating: 80°C / 300 VRMS, 105°C / 300 VRMS
  • UL Flammability: VW-1
  • CSA Rating: TR-64, FT1
  • CSA Temperature Rating: 90°C
  • Temperature Range: -40 to 105°C
  • Bend Radius: 10X Cable Diameter
  • Pull Tension: 1.37 Lbs, Maximum
  • Voltage Rating: 300 VRMS
  • Inductance: 0.08 µH/ft, Nominal
  • Conductor DCR: 65 Ω/1000ft @20°C, Nominal
  • Packaging 5000 FT: 6.5 x 6 x 1.9 Continuous length
  • Packaging 1000 FT: 6.5 x 2 x 1.9 Continuous length
  • Packaging 100 FT: 2.75 x 1 x 1.125 Continuous length

Buy the 3048 BK005 ALPHA WIRE Hook Up Wire | myMectronic

Purchase the ALPHA WIRE 3048 BK005 hook-up wire securely and conveniently online.

Buy Now

Frequently Asked Questions

Where can I buy ALPHA WIRE 3048BK005?

You can click on the BUY or RFQ button to purchase 3048BK005 from an authorized ALPHA WIRE distributor.

How do I troubleshoot issues or seek technical support for part 3048BK005?

You can download the 3048BK005 datasheet or visit the ALPHA WIRE website for support.

Who is the manufacturer of 3048BK005?

ALPHA WIRE
