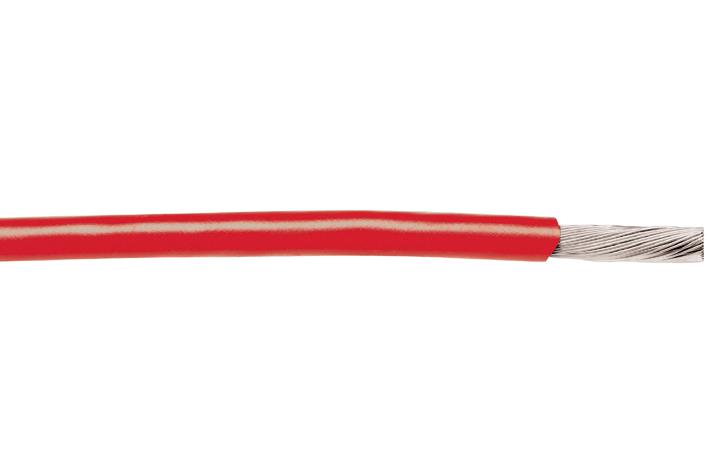

ALPHA WIRE 3048RD005 Hook-up Wire
The 3048 RD005 is a 100-foot hook-up wire featuring a stranded tinned copper conductor and PVC insulation. Designed for use in control cabinets within protected environments, as well as in machine tools, high-temperature ovens, and off-road construction equipment. This wire offers excellent durability against wear and abrasion, along with strong electrical properties and resistance to oils, solvents, and chemicals. It provides consistent performance for easy handling, stripping, and terminating. Additional features include flame resistance, a maximum pull tension of 1.37 pounds, and a nominal inductance of 0.08 µH per foot, making it suitable for industrial and automotive control applications.
ALPHA WIRE 3048RD005 Hook-up Wire Specifications:
- Conductor Material: Stranded tinned copper
- Insulation Material: PVC
- Insulation Thickness: 0.016 inches
- Conductor Diameter: 28 (7/36) AWG, 0.015 inches
- Voltage Rating: 300 V
- Temperature Range: -40°C to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 1.37 pounds
- Inductance: 0.08 µH per foot
- CSA Certification: TR-64
- UL Certification: JAWMSTYLE 1007, 80°C / 300 V, AWMI STYLE 1569, 105°C / 300 V
- Compliance: RoHS 2, REACH, China RoHS
- Applicable Lengths: 100 ft, 1000 ft, and 5000 ft spools
Buy the AlphaWire Series Hook-up Cable: 3048RD005
Shop online for the AlphaWire Series 3048RD005 hook-up wire, a durable, PVC-insulated cable designed for control panels, machine tools, and rugged industrial applications. This 100-foot spool features a stranded tinned copper conductor rated at 300 V and withstands temperatures from -40°C to 105°C. Its flexible construction and abrasion-resistant jacket make handling, stripping, and termination easy. Certified by UL and CSA, it complies with RoHS 2 and REACH standards, ensuring safety and environmental compliance for automotive, construction, and electrical control uses. Buy now for dependable performance and ship quickly to your project site.
Order your AlphaWire Series 3048RD005 hook-up wire today and ensure reliable electrical connections in industrial environments with excellent durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3048RD005?
You can click on the BUY or RFQ button to purchase 3048RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3048RD005?
You can download the 3048RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3048RD005?
ALPHA WIRE
