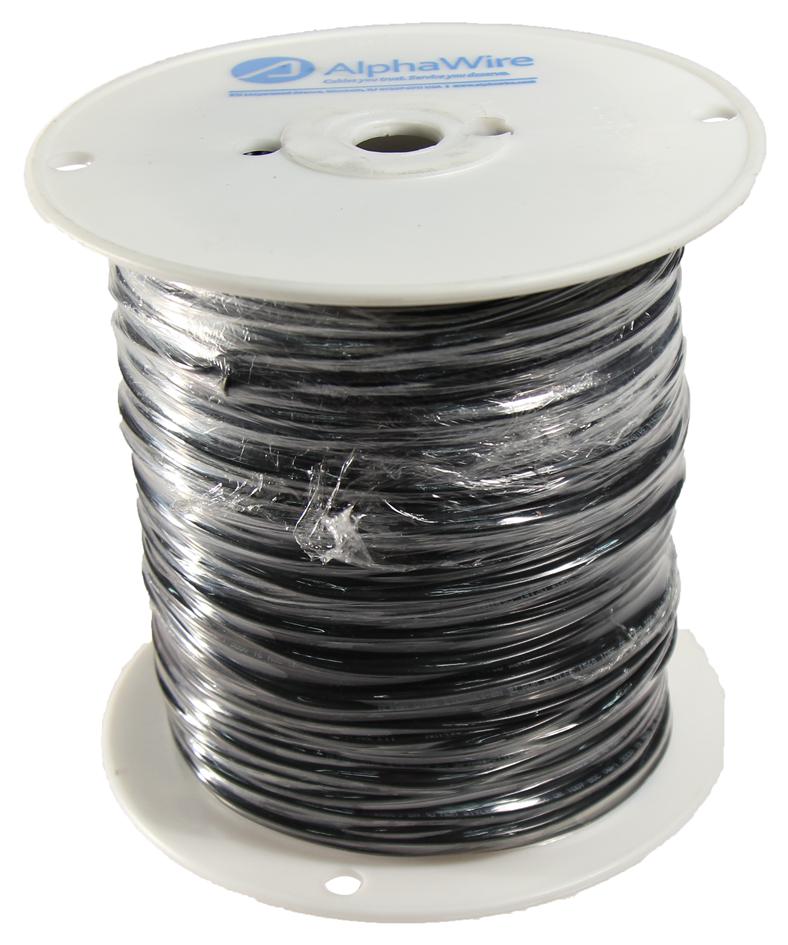

ALPHA WIRE 3051VI005 Hook-up wire
The 3051 VI005 is a 100-foot hook-up wire featuring a stranded tinned copper conductor and PVC insulation. It is suitable for use in control cabinets within protected environments, or in specialized applications such as machine tools on factory floors, high-temperature ovens, or off-road construction equipment. The wire offers excellent resistance to wear, abrasion, oil, solvents, and chemicals, and provides consistent electrical properties. It also has excellent flame resistance, can withstand a maximum pull tension of 5.5 pounds, and has a nominal inductance of 0.06 microhenries per foot, ensuring easy handling, stripping, and termination.
ALPHA WIRE 3051VI005 Hook-up wire Specifications:
- Conductor: Stranded tinned copper
- Insulation: PVC, 0.016-inch wall thickness
- Length: 100 feet per spool
- Voltage Rating: 300 V
- Temperature Range: -40°C to 105°C
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 5.5 pounds
- Inductance: 0.06 μH/ft
- Conductor Resistance: 16.2 Ω/1000 ft at 20°C
- Flammability: UL 94V-0 compliant
- CSA Certified: TR-64 FT1
- RoHS and REACH compliant
Buy the Buy Alpha Wire Part Number 3051VI005 Online
Purchase the Alpha Wire 3051VI005 hook-up wire online today for high-quality, flame-resistant conductors suitable for control cabinets, machinery, and demanding environments. Its tinned copper core and PVC insulation provide durability, flexibility, and chemical resistance, ensuring secure terminations and long service life. Ideal for industrial control, automation, and high-temperature applications, this 100-foot spool guarantees excellent electrical performance with a maximum pull tension of 5.5 pounds and nominal inductance of 0.06 microhenries per foot. Get reliable, UL and CSA approved wiring now!
Order your Alpha Wire Series3051VI005 today and ensure reliable electrical connections for your control panels and machinery.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3051VI005?
You can click on the BUY or RFQ button to purchase 3051VI005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3051VI005?
You can download the 3051VI005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3051VI005?
ALPHA WIRE
