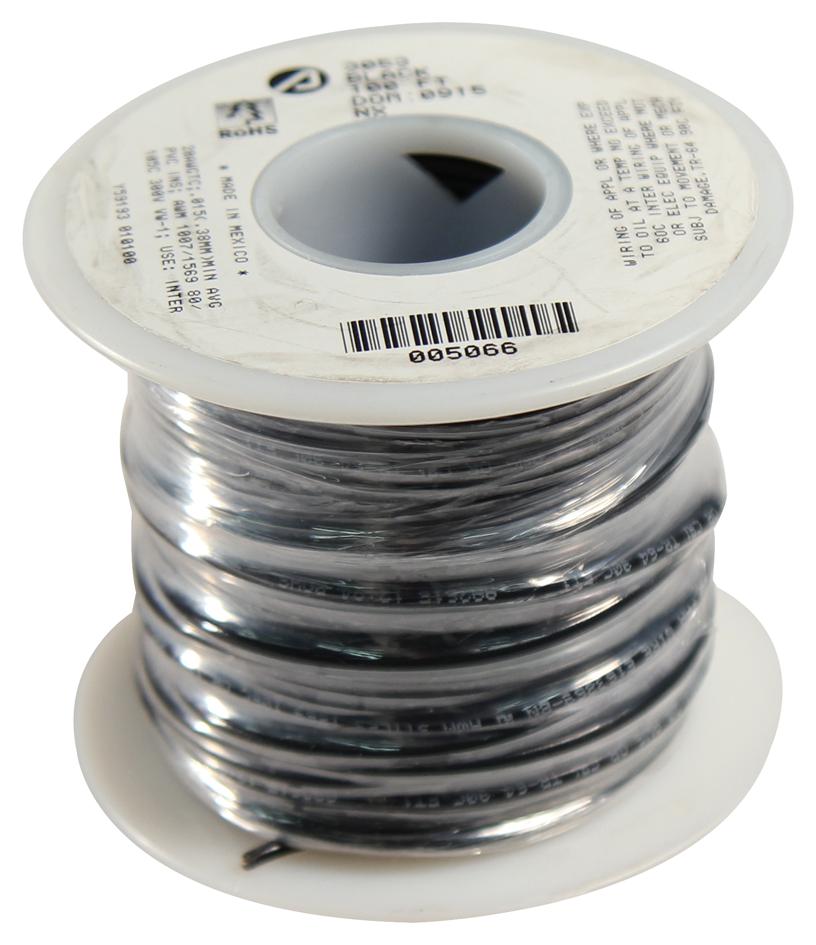

ALPHA WIRE 3053BK005 Hook-up Wire
The 3053 BK005 is a 100-foot black hook-up wire with 20 AWG stranded tinned copper conductors and PVC insulation. Designed for general-purpose applications, this wire offers excellent resistance to wear, abrasion, oil, solvents, and chemicals. It provides good electrical properties, flame resistance, and ease of handling for stripping and termination. Suitable for use in automation, process control, microwave, defense, military, aerospace, and industrial applications. It can withstand a maximum pull tension of 7.9 lbs, features a 0.41 mm insulation thickness, and complies with REACH regulation (EC 1907/2006).
ALPHA WIRE 3053BK005 Hook-up Wire Specifications:
- Conductor: 20 AWG stranded tinned copper
- Insulation Wall Thickness: 0.016 inches (0.41 mm)
- Cable Length: 100 feet (30.48 meters)
- Outer Diameter: Compatible with 0.069 inches ± 0.002
- Temperature Range: -40°C to +105°C
- Voltage Rating: 300 V
- Flame Resistance: Flame resistant PVC
- Bend Radius: 10X cable diameter
- Pull Tension: Maximum 7.9 lbs
- Electrical Resistance (DCR): 11.4 Ω/1000 ft at 20°C
- Inductance: 0.05 mH/ft
- Certification: RoHS compliant, REACH regulation compliant
- Color: Black
- Applicable Standards: UL JAWMSTYLE 1007 80°C / 300 V, AWM STYLE 1569 105°C / 300 V, VW-1
Buy the AlphaWire 3053BK005 – Reliable Hook-up Wire for Industrial Applications
Secure your projects with AlphaWire 3053BK005, a durable 100-foot black hook-up wire with 20 AWG stranded tinned copper conductors and PVC insulation. Perfect for automation, aerospace, military, and industrial applications, it ensures excellent electrical performance, flame resistance, and flexibility. Its robust construction supports a maximum pull tension of 7.9 lbs, with a thin 0.41 mm insulation wall for easy stripping and termination. Compliant with RoHS and REACH standards, this wire delivers safety and reliability for critical electrical installations.
Buy AlphaWire 3053BK005 now and experience unmatched reliability and performance in industrial and aerospace wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3053BK005?
You can click on the BUY or RFQ button to purchase 3053BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3053BK005?
You can download the 3053BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3053BK005?
ALPHA WIRE
