ALPHA WIRE 3071WH001 Control Cable
This high-quality electrical cable is designed for wiring applications requiring flexibility, durability, and compliance with international safety standards. Made with 22 AWG TC conductors and PVC insulation, it is suitable for both dry and wet environments, rated at 600V and compliant with UL, CSA, and CE standards. The cable features a temperature range from -40°C to 105°C, a bend radius of 5 times the diameter, and a maximum pull tension of 5.5 lbs. Its corrosion-resistant insulation and wide color options make it ideal for control panels, automation, and wiring projects requiring reliable and compliant conductors.
ALPHA WIRE 3071WH001 Control Cable Specifications:
- Voltage Rating: 600 V
- Conductor: 22 AWG TC, 0.030 inch
- Insulation: PVC, 0.032 inch wall
- Temperature Range: -40°C to 105°C
- Bend Radius: 5X Cable Diameter
- Pull Tension: 5.5 lbs maximum
- Inductance: 0.08 wH/ft
- Conductor DCR: 16.2 Ω/1000 ft at 20°C
- Outer Diameter: varies with length and configuration
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet

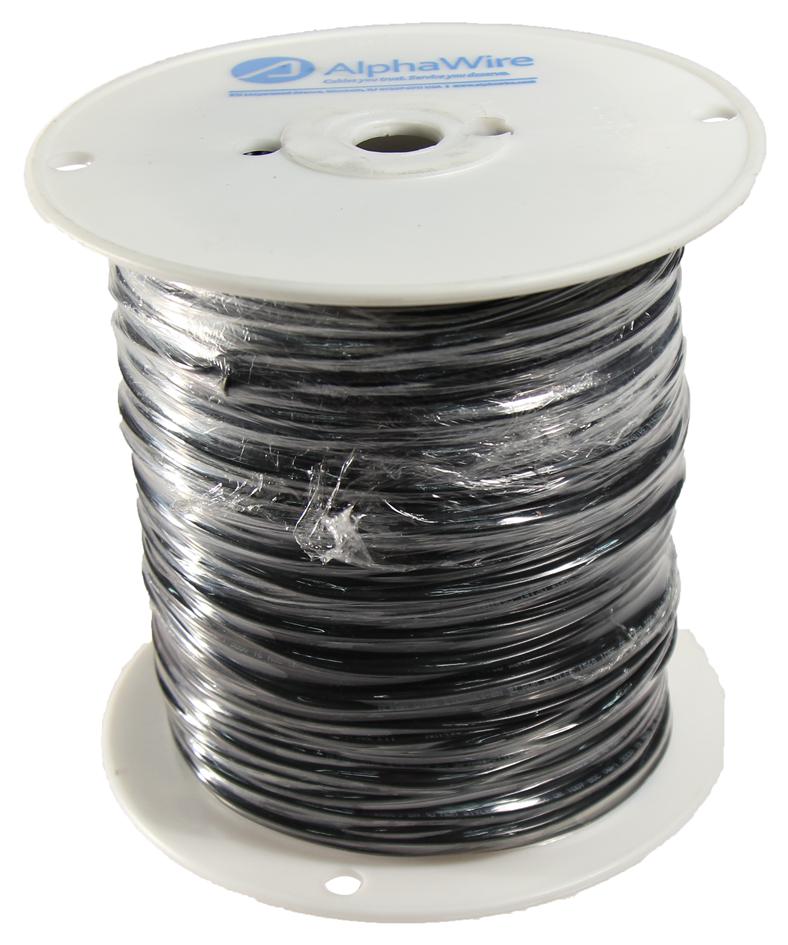

Buy the Buy AlphaWire Part Number 3071WH001 Online
Order the AlphaWire control cable part number 3071WH001 online today to ensure you receive a superior quality, UL and CSA certified wiring solution. Designed for flexibility and durability, it handles voltages up to 600V with a temperature range from -40°C to 105°C. Its PVC insulation provides excellent chemical resistance, making it ideal for automation, control panels, and wiring projects. Enjoy quick, hassle-free online purchasing, reliable delivery, and technical support to keep your projects on track with safe, compliant conductors.
Buy AlphaWire Part Number 3071WH001 now and experience unmatched reliability and performance with compliant, flexible wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3071WH001?
You can click on the BUY or RFQ button to purchase 3071WH001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3071WH001?
You can download the 3071WH001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3071WH001?
ALPHA WIRE
