ALPHA WIRE 3073BK005 Hook-up Wire
The 3073 BK005 is a 100-foot hook-up wire featuring a stranded tinned copper conductor and PVC insulation. Designed for control cabinets and machinery like machine tools, ovens, or off-road equipment, it withstands wear, abrasion, oil, solvents, and chemicals. The wire offers excellent electrical properties, uniformity, and easy handling, stripping, and termination. It has a maximum pull tension of 7.9 lbs, a voltage rating of 600V, an inductance of 0.08 µH/ft, and a temperature range from -40°C to 105°C, ensuring high-performance in demanding environments.
ALPHA WIRE 3073BK005 Hook-up Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 20 AWG (10/30)
- Insulation Wall Thickness: 0.032 inches, PVC
- Voltage Rating: 600 V
- Temperature Range: -40°C to +105°C
- Bend Radius: 5X cable diameter
- Maximum Pull Tension: 7.9 lbs
- Inductance: 0.08 µH per foot
- Conductor DCR: 11.4 ohms per 1000 ft @ 20°C
- Cable Length: 100 feet
- Outer Dimensions for 100 ft spool: 6.5 x 6 x 1.9 inches
- Compliance: UL Style 1015, CSA TEW-105, RoHS, REACH
- Flame Resistance: VW-1 rated

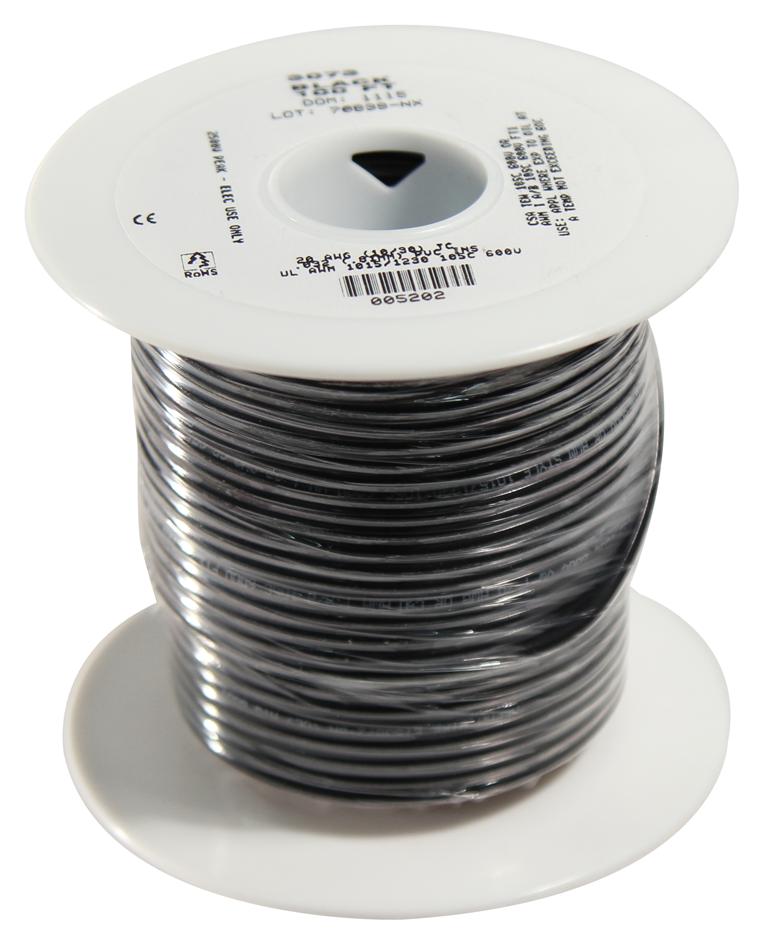

Buy the AlphaWire 3073 BK005 – Reliable Hook-up Wire for Industrial Applications
Purchase the AlphaWire 3073 BK005 online—this 100-foot hook-up wire features a tinned copper conductor and PVC insulation, ideal for control cabinets, machinery, and harsh environments. Resistant to wear, oil, solvents, and chemicals, it ensures reliable electrical performance. With a maximum tension of 7.9 lbs, excellent flame resistance, and a temperature range from -40°C to 105°C, this wire provides durability and safety for industrial applications. Order now for quick delivery and high-quality connection solutions.
Get AlphaWire 3073 BK005 today—built for precision and long-lasting durability in control systems and machinery.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3073BK005?
You can click on the BUY or RFQ button to purchase 3073BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3073BK005?
You can download the 3073BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3073BK005?
ALPHA WIRE
