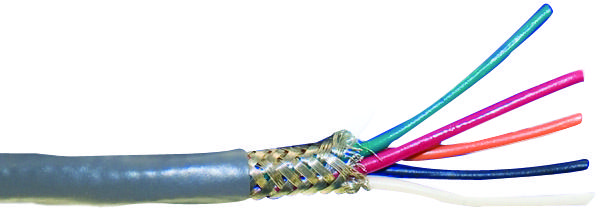

ALPHA WIRE 3202SL001 Multi-Conductor Cable
This is a high-quality, RoHS-compliant multi-conductor cable suitable for industrial and electronic applications. It features a 3x1 conductor configuration with 26 AWG Tinned Copper conductors, insulated with PVC and nylon. The cable incorporates a 90% coverage TC braid shield for electromagnetic interference protection, a clear Mylar tape core wrap, and a PVC outer jacket with a wall thickness of 0.014 inches in slate color. Rated for 600 V and operate within a temperature range of -55°C to +105°C, making it durable for various environmental conditions and precise electronic wiring tasks.
ALPHA WIRE 3202SL001 Multi-Conductor Cable Specifications:
- Conductor: 26 AWG Tinned Copper
- Insulation: PVC (0.010 inch wall) and Nylon (0.003 inch wall)
- Cable construction: 3 components cabled, 8 twists per foot
- Shield: TC braid shield with 90% coverage
- Jacket: PVC, 0.014 inch wall, slate color
- Voltage Rating: 600 V
- Temperature Range: -55°C to +105°C
- Capacitance: 33 pF/ft @1kHz
- Ground Capacitance: 59 pF/ft @1kHz
- Inductance: 0.22 μH/ft
- Conductor DCR: 41 Ω/1,000 ft @20°C
- Shield DCR: 6.6 Ω/1,000 ft @20°C
- Cable Lengths: 1000 ft, 500 ft, 100 ft spools
Buy the Buy Alpha Wire Part Number 3202SL001 Online
Purchase Alpha Wire 3202SL001 online today—designed for reliable performance with a 3x1 conductor configuration, PVC and nylon insulation, and a shielded braid for EMI protection. Rated for 600 V and operating within -55°C to +105°C, this durable cable features a PVC jacket in slate color with a 0.014 inch wall. Ideal for industrial and electronic wiring, its specifications include a capacitance of 33 pF/ft, ground capacitance of 59 pF/ft, and a conductor DCR of 41 Ω/1,000 ft, ensuring long-lasting, high-performance connections.
Get Alpha Wire 3202SL001 today—built for durability with shielded construction and high temperature resistance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3202SL001?
You can click on the BUY or RFQ button to purchase 3202SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3202SL001?
You can download the 3202SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3202SL001?
ALPHA WIRE
