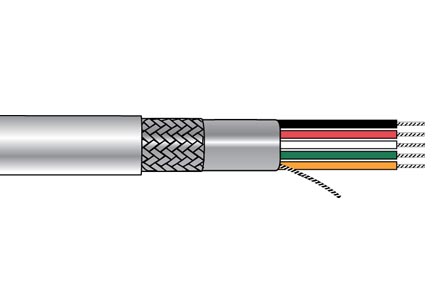

ALPHA WIRE 3469CSL005 Shielded Multi-Conductor Cable
The ALPHA WIRE 3469C SL005 is a versatile shielded multi-conductor cable designed for applications requiring reliable signal transmission and noise immunity. Constructed with 28 AWG stranded conductors, the cable offers flexibility and durability. The PVC insulation provides excellent electrical insulation properties, while the aluminum/mylar tape shield minimizes electromagnetic interference. This cable is commonly used in industrial control systems, instrumentation, and data communication applications where signal integrity is critical. It is RoHS compliant, ensuring adherence to environmental regulations. The cable's construction includes a twisted pair design for reduced crosstalk and a durable PVC jacket for protection against abrasion and environmental factors.
ALPHA WIRE 3469CSL005 Shielded Multi-Conductor Cable Specifications:
- Conductor AWG: 28 (7/36) AWG TC
- Insulation Material: PVC
- Insulation Wall Thickness: 0.010"
- Color Code: Alpha Wire Color Code D
- Number of Conductors: 9
- Cable Twists: 6.9 Twists/foot (min)
- Shield Material: Alum/Mylar Tape
- Shield Overlap: 25% Min.
- Drain Wire AWG: 28 (7/36) AWG TC
- Braid Coverage: 65% Min.
- Jacket Material: PVC
- Jacket Wall Thickness: 0.035"
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 3469C 9C 28 AWG SHIELDED 75C (UL) TYPE CL2 OR AWM 2464 --- LLXXXXXX CSA TYPE CMG FT4 CE ROHS * = Factory Code
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 16.4 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 25 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 45 pf/ft @1 kHz, Nominal
- Inductance: 0.22 µH/ft, Nominal
- Conductor DCR: 66 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 6.2 Ω/1000ft @20°C, Nominal
- UL Style: AWM/STYLE 2464
- CSA Type: CMG
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with RoHS 2 and China RoHS SJ/T 11364-2014
- SVHC Status: Does not contain SVHCs above 0.1% mass
