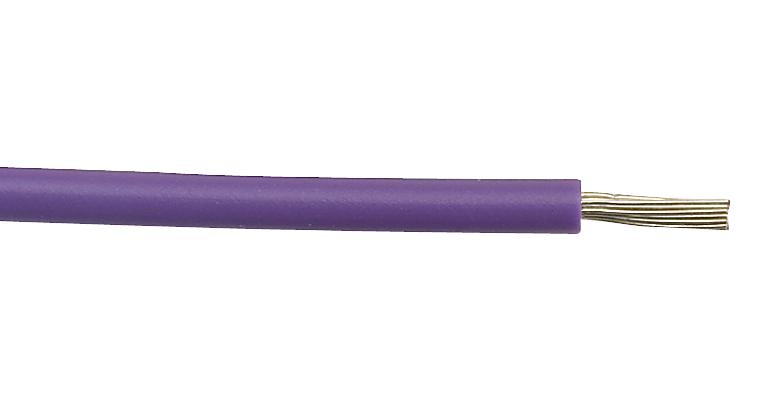

ALPHA WIRE 422010VI005 Electrical Wire
This multicolored, flexible electrical wire is rated for 300 V and withstands temperatures from -10°C to 80°C. Constructed with 20 AWG copper conductors and PVC insulation, it features a semi-rigid wall for durability and easy handling. The wire complies with UL and CSA standards, ensuring safety and reliability in electrical applications. Available in multiple colors including blue, violet, slate, and white, this cable is suitable for control, signal, and instrumentation wiring. It comes in various lengths up to 5,000 ft for versatile installation needs.
ALPHA WIRE 422010VI005 Electrical Wire Specifications:
- Conductor: 20 AWG TC copper
- Insulation: PVC, 0.010" wall, semi-rigid
- Voltage Rating: 300 V
- Temperature Range: -10°C to 80°C
- Bend Radius: 10X cable diameter
- Pull Tension: 7.9 lbs max
- Inductance: 0.04 pH/ft
- Conductor DCR: 11.4 Ω/1000 ft @ 20°C
- Lengths: 5000 ft, 1000 ft, 500 ft, bulk custom options
- Colors: Blue, violet, slate, white
- Standards: UL JAWMSTYLE 1061, CSA AWM 1061
- RoHS and REACH compliant
- Environmental: Meets EU Directive 2011/65/EU, 2015/863/EU
Buy the AlphaWire Series 1061 Electrical Wire: 422010
Secure your electrical wiring needs by purchasing the AlphaWire 422010 online. This versatile wire offers excellent flexibility, with 20 AWG copper conductors and PVC insulation rated for 300 V. It supports temperatures from -10°C to 80°C, is compliant with UL and CSA safety standards, and is available in multiple colors including blue, violet, slate, and white. Ideal for control, signal, and instrumentation applications, this wire is available in various lengths up to 5000 ft, ensuring efficient installation for your projects.
Buy AlphaWire 422010 now and experience unmatched reliability with flexible control and signal wiring optimized for safety and performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 422010VI005?
You can click on the BUY or RFQ button to purchase 422010VI005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 422010VI005?
You can download the 422010VI005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 422010VI005?
ALPHA WIRE
