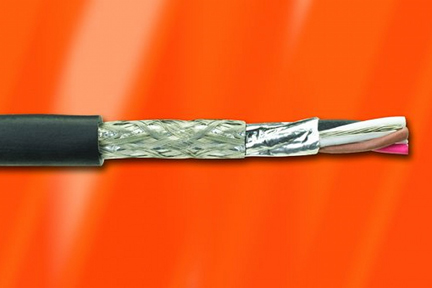

ALPHA WIRE 45062SL199 Multi-Conductor Cable Assembly
The ALPHA WIRE 45062 SL199 is a multi-conductor cable assembly designed for a wide range of industrial and commercial applications. It consists of two 18 AWG tinned copper conductors insulated with TPE, cabled together and jacketed with a durable TPE outer layer. The cable incorporates a rip cord for easy termination and is marked with key specifications and certifications, including UL and CSA listings. Its construction provides flexibility, sunlight resistance, and reliable performance in demanding environments. It is commonly used in power cords, control cables, and other applications requiring multiple conductors.
ALPHA WIRE 45062SL199 Multi-Conductor Cable Assembly Specifications:
- Conductor AWG: 18 (16/30)
- Conductor Material: Tinned Copper
- Insulation Material: TPE
- Insulation Wall Thickness: 0.016"
- Cable Diameter: 0.252"
- Color Code: Alpha Wire Color Code D (Black, Red)
- Twists per Foot: 6.9
- Jacket Material: TPE
- Jacket Wall Thickness: 0.045"
- Ripcord: 810 Denier Nylon
- Print Legend: ALPHA WIRE - P/N 45062 2C 18 AWG XTRAGUARD(R) 4 (UL) TYPE PLTC 105C SUN RES OR AWM 21916 125C 300 V OR CRU AWM I/II A/B 125C 300V FT1 P-07-KA140023-MSHA CE ROHS (SEQ FOOTAGE) * = Factory Code
- UL Voltage Rating: 300 VRMS
- UL Temperature Rating: 125°C
- CSA Voltage Rating: 300 VRMS
- CSA Temperature Rating: 125°C
- Capacitance: 17 pF/ft @ 1 kHz
- Characteristic Impedance: 91 Ω
- Inductance: 0.18 µH/ft
- Conductor DCR: 7 Ω/1000ft @ 20°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 25 Lbs
- Sunlight Resistance: Yes
- Temperature Range: -50 to 125°C
- RoHS Compliant: Yes
- REACH Compliant: Yes
