ALPHA WIRE 461626BK005 Hook-up Wire

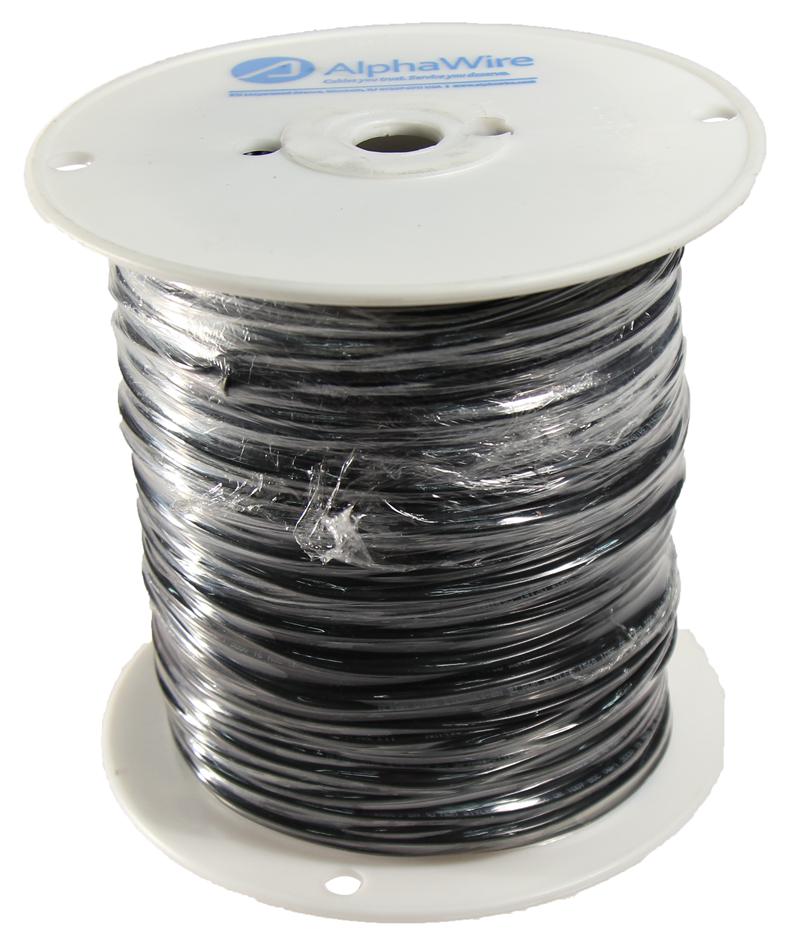

The 461626 BK005 hook-up wire is a 100-foot length featuring a stranded bare copper conductor and PVC insulation, ideal for control cabinets, machine tools, high-temp ovens, and off-road equipment. It offers exceptional wear, abrasion, oil, solvent, and chemical resistance, providing reliable electrical performance and durability in industrial environments. Designed for easy handling, stripping, and termination, it supports a maximum pull tension of 20.4 pounds and has a low inductance of 0.06 µH per foot. Suitable for automotive, control, and manufacturing applications with flame-resistant properties.
ALPHA WIRE 461626BK005 Hook-up Wire Specifications:
- Conductor Material: Bare copper, stranded
- Insulation Material: PVC
- Length: 100 feet
- Temperature Range: -40°C to +105°C
- Voltage Rating: 600 V
- Maximum Pull Tension: 20.4 pounds
- Inductance: 0.06 µH per foot
- Flame Resistance: Yes
- Wire Gauge: 16 AWG (26/30)
- Wall Thickness: 0.032 inches
- Conductor Diameter: 0.060 inches
- Standards: UL 1015, CSA AWM I A/B 105°C / 600 V
- Certifications: RoHS compliant
- Environmental Compliance: EU RoHS, China RoHS
Buy the AlphaWire 461626 U+2013 Reliable Hook-up Wire for Industrial Applications
Purchase the AlphaWire 461626 hook-up wire online today to ensure your projects are equipped with durable, flame-retardant cable. Designed for industrial control panels, machine tools, and harsh environments, this 100-foot length features a stranded copper conductor and PVC insulation for excellent abrasion, chemical, and oil resistance. Its ease of handling, stripping, and termination makes it a preferred choice for electricians and engineers. With a maximum pull tension of 20.4 pounds and eco-friendly, RoHS-compliant materials, it guarantees reliable electrical performance in demanding applications.
Order your AlphaWire 461626 hook-up wire today and equip your control systems with high-quality, flame-resistant cable designed for tough industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 461626BK005?
You can click on the BUY or RFQ button to purchase 461626BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 461626BK005?
You can download the 461626BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 461626BK005?
ALPHA WIRE
