ALPHA WIRE 470031CYCL033 Industrial Control Cable
Pro-Met shielded flexible industrial control cable designed for demanding environments, featuring three 17 AWG stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC outer jacket. This cable is resistant to oils, UV radiation, and chemicals, making it ideal for food and beverage, medical devices, industrial automation, automotive, defense, and aerospace applications. It can withstand up to 1 million flex cycles, with a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. Bending radii are 20x for occasional movement and 6x for fixed installations, ensuring durability in challenging environments.
ALPHA WIRE 470031CYCL033 Industrial Control Cable Specifications:
- Conductors: three 17 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Flex Life: Up to 1 million cycles
- Bend Radius: 20 times the outer diameter (occasional movement), 6 times (fixed)
- Voltage Rating: 300/500 V
- Flame Behavior: IEC 60332-1
- UV Resistance: Yes
- Oil and Chemical Resistance: Yes
- Application Compatibility: Food, Medical, Automation, Automotive, Defense, Aerospace
- Dimensions: Outer diameter approximately 8 mm, jacket thickness about 0.5 mm
- Conductor Resistance: 19.5 Ω/km at 20°C

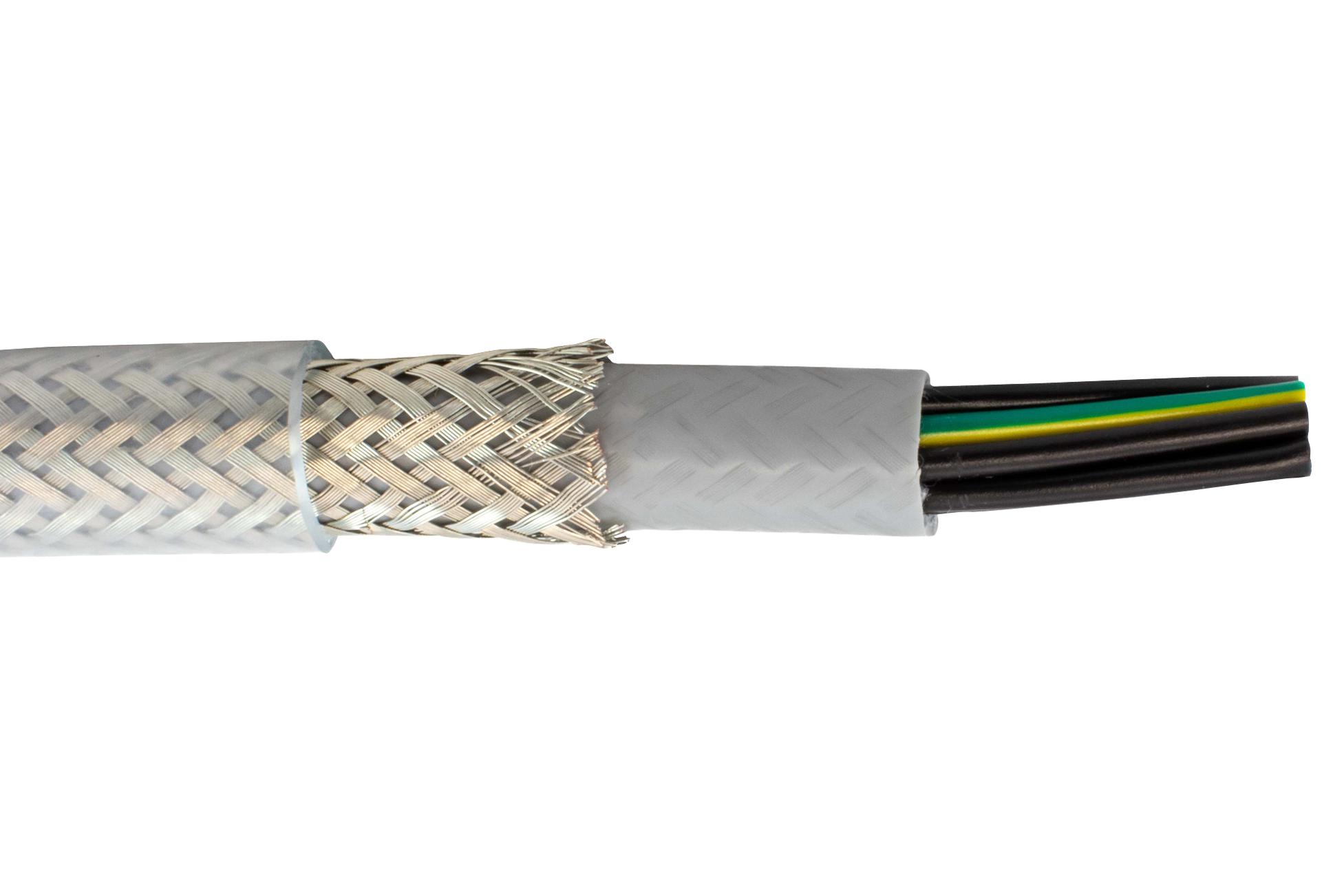

Buy the Buy Alpha Wire Pro-Met Shielded Industrial Control Cable Part Number 470031CYCL033 Online
Purchase the Alpha Wire Pro-Met shielded control cable online for high-performance, durable wiring suitable for industrial automation, aerospace, and medical applications. This flexible cable features three 17 AWG stranded copper conductors with an 80% copper braid shield, providing excellent resistance to oils, UV, and chemicals. It can withstand up to 1 million flex cycles and operates within a wide temperature range of -40°C to +80°C. Perfect for demanding environments requiring reliable, long-lasting wiring solutions for control and instrumentation needs.
Order your Alpha Wire Pro-Met 470031CYCL033 shielded control cable today and ensure your industrial projects have reliable, durable wiring for demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470031CYCL033?
You can click on the BUY or RFQ button to purchase 470031CYCL033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470031CYCL033?
You can download the 470031CYCL033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470031CYCL033?
ALPHA WIRE
