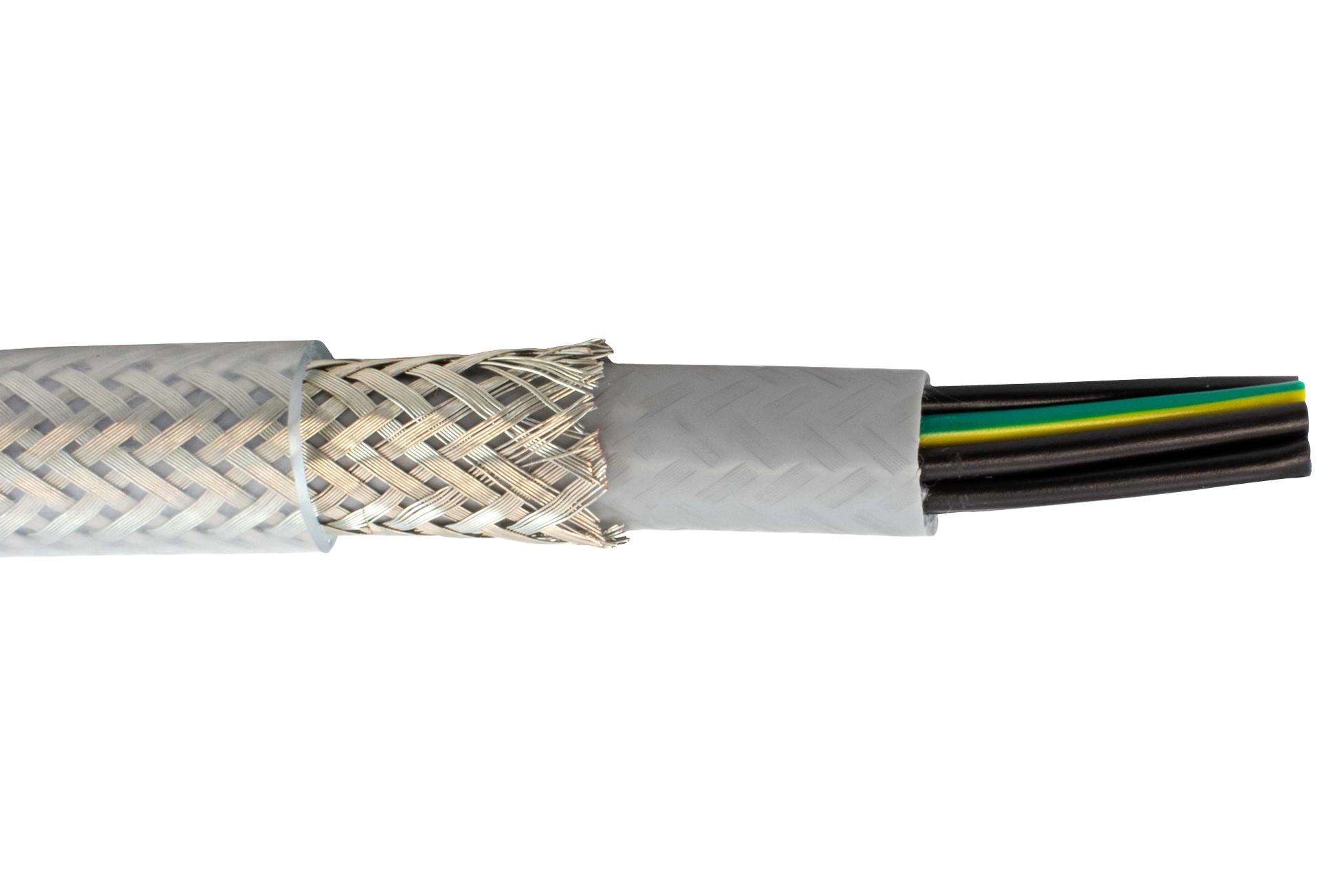

ALPHA WIRE 470037CYCL321 industrial control cable
Pro-Met shielded flexible industrial control cable designed for harsh environments. It features two or three conductors with 19 AWG stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC outer jacket. The cable resists oils, UV exposure, and chemicals, making it ideal for food processing, medical devices, industrial automation, automotive, defense, aerospace, and multi-axis motion control. With a temperature range of -40°C to +80°C, it supports up to 1 million flex cycles and a recommended bending radius of 6 to 20 times its outer diameter for static or flexible use.
ALPHA WIRE 470037CYCL321 industrial control cable Specifications:
- Conductor: 19 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Voltage Rating: 300/500V
- Flex Cycles: Up to 1 million
- Bending Radius: 6X for fixed, 20X for flexible use
- Number of Conductors: 2 or 3
- Maximum Conductor Resistance: 26 Q/Km @20°C
- Construction Standards: IEC, VDE, CE, RoHS, Reach compliant
- Application Environments: Industrial automation, food processing, medical, automotive, aerospace
Buy the Alpha Wire 470037CY – Reliable Industrial Control Cable for Harsh Conditions
Order the Alpha Wire 470037CY industrial control cable online today and ensure your projects benefit from high durability, excellent oil and UV resistance, and flexible performance. Designed for harsh environments, this shielded cable supports up to 1 million flex cycles, making it perfect for automation, food processing, medical devices, automotive, defense, aerospace, and multi-axis motion control. Its transparent PVC outer jacket provides excellent protection, while the tinned copper braid shield ensures electrical stability and shielding effectiveness. Secure your supply chain and improve operational efficiency by purchasing online now.
Buy Alpha Wire 470037CY now and experience unmatched reliability and performance in demanding industrial control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470037CYCL321?
You can click on the BUY or RFQ button to purchase 470037CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470037CYCL321?
You can download the 470037CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470037CYCL321?
ALPHA WIRE
